CENTRIFUGAL PUMP CD-M
CENTRIFUGAL PUMP CD-M
Quantity

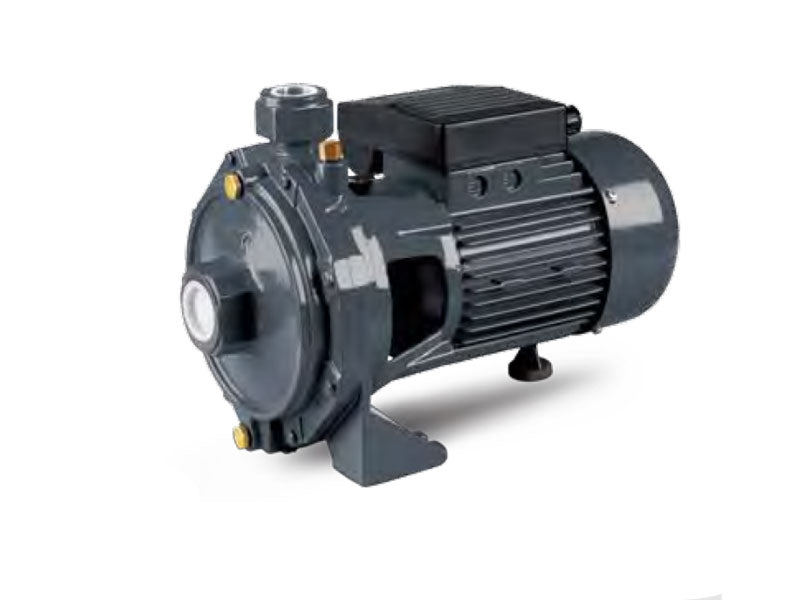

CENTRIFUGAL PUMP CD-M
High-Pressure Dual Impeller Centrifugal Pump for Clean Water
- Dual Impeller Design: Delivers higher pressure and head compared to single impeller pumps.
- Stainless Steel Shaft & Impellers: Built for durability, corrosion resistance, and long life.
- Cast Iron Pump Body: Industrial-grade housing ensures strength and minimal vibration.
- Thermal Overload Protector: Integrated motor protection for added safety and longevity.
- High Flow & High Head: Ideal for multi-story buildings and long-range irrigation systems.
Model & Technical Specifications
| Model | Power | Max Flow | Max Head | Inlet / Outlet | Voltage | Motor Protection |
|---|---|---|---|---|---|---|
| CD-M 1.0HP | 0.75 kW (1 HP) | ~90 L/min | ~42 m | 1¼” × 1” | 220V / 50Hz | Yes (Built-in) |
| CD-M 1.5HP | 1.1 kW (1.5 HP) | ~95 L/min | ~52 m | 1¼” × 1” | 220V / 50Hz | Yes (Built-in) |
Recommended Applications
- High-rise domestic water supply
- Industrial process water transfer
- Garden irrigation and booster systems
- Pressure boosting for clean water systems
Need help choosing between CD-M and CE models? Contact us here and we’ll guide you to the right pump for your pressure and flow needs.
