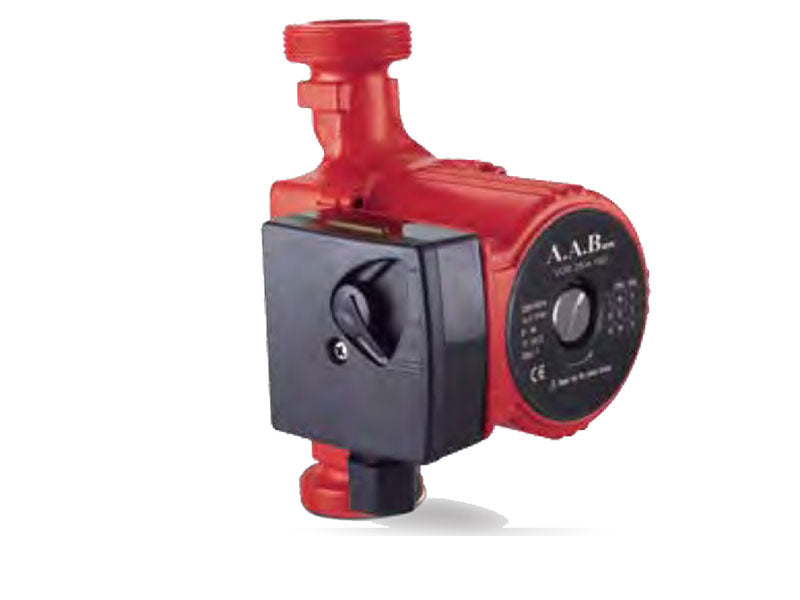

CIRCULATION PUMP 25/40 and 25/60
CIRCULATION PUMP 25/40 and 25/60
Quantity
Quiet, Compact & Reliable Heating Circulators
- Energy Efficient: Designed for low-power hot water circulation in closed-loop heating systems.
- Three-Speed Control: Adjust the flow rate to match your system’s demand.
- Built-in Thermal Protection: Prevents motor burnout from overheating.
- Quiet Operation: Perfect for domestic use with near-silent performance.
- Simple Installation: Comes with threaded brass unions for quick connection.
Model Line-Up & Technical Specs
| Model | Power | Max Flow | Max Head | Connection | Voltage | Speed Settings | Temperature Range |
|---|---|---|---|---|---|---|---|
| 25/40 | 90W | ~35 L/min | 4 m | 1” BSP | 220V – 240V / 50Hz | 3-Speed Manual | +2°C to +110°C |
| 25/60 | 120W | ~45 L/min | 6 m | 1” BSP | 220V – 240V / 50Hz | 3-Speed Manual | +2°C to +110°C |
Common Applications
- Hot water recirculation in central heating systems
- Floor heating loops
- Solar water heating circulation
- Domestic and light commercial boilers
Need help choosing between 25/40 or 25/60? Contact us and we’ll help you match the model to your pipe layout and building size.
