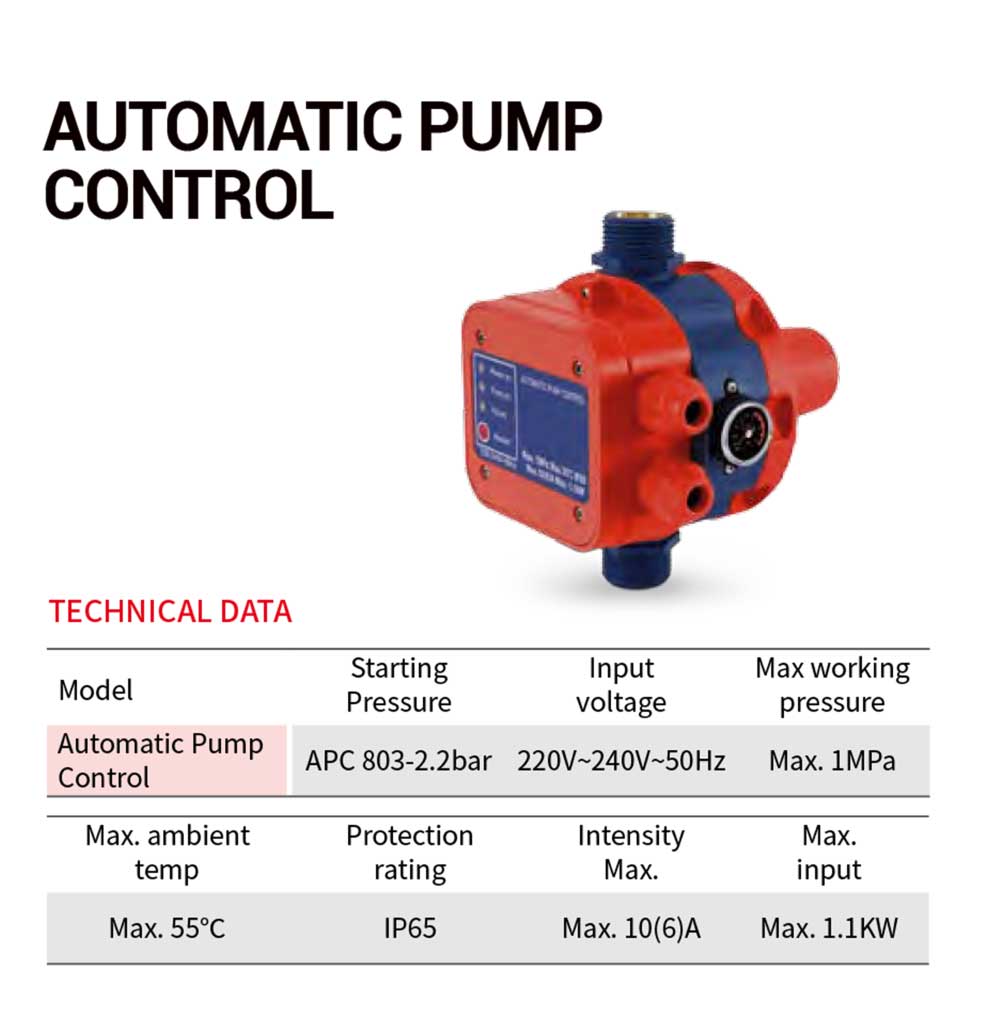

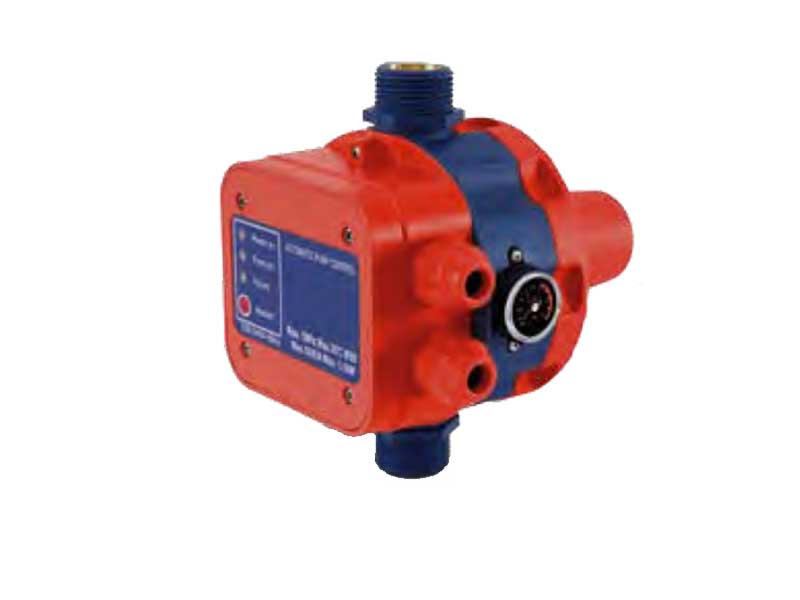

AUTOMATIC PUMP CONTROL

Starting Pressure 0.8 Bar 2.2 Bar 1.5 Bar or 2.2 Bar (selectable) 1 – 6 bar (dial adjustable)

Why You’ll Want These Controllers

Automatic Start/Stop: Senses pressure drop, powers the pump on, and switches it off when flow stops—no pressure tank needed.
Dry-Run Safety: Integrated flow/pressure sensor cuts power if water runs out, protecting the pump.
Built-in Non-Return Valve: Eliminates back-flow, water hammer and unwanted cycling.
LED/Reset Button: Quick fault diagnostics; one-touch restart after tank refills.
IP65 Enclosure: Dust-tight and splash-proof—perfect for booster sets, irrigation lines, RO systems and domestic water supply.

Model	Start Pressure	Max Working Pressure	Input Voltage	Max Motor Load	Intens. Max	Ambient Temp	Protection

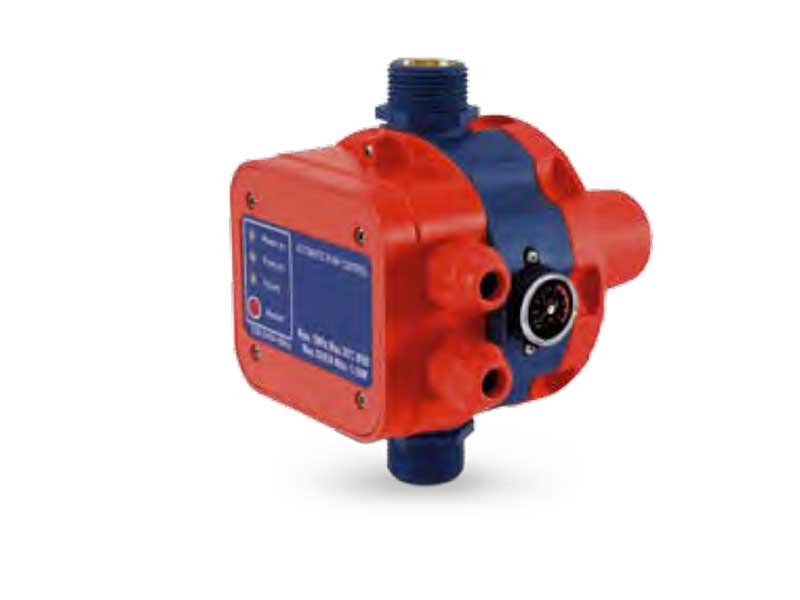

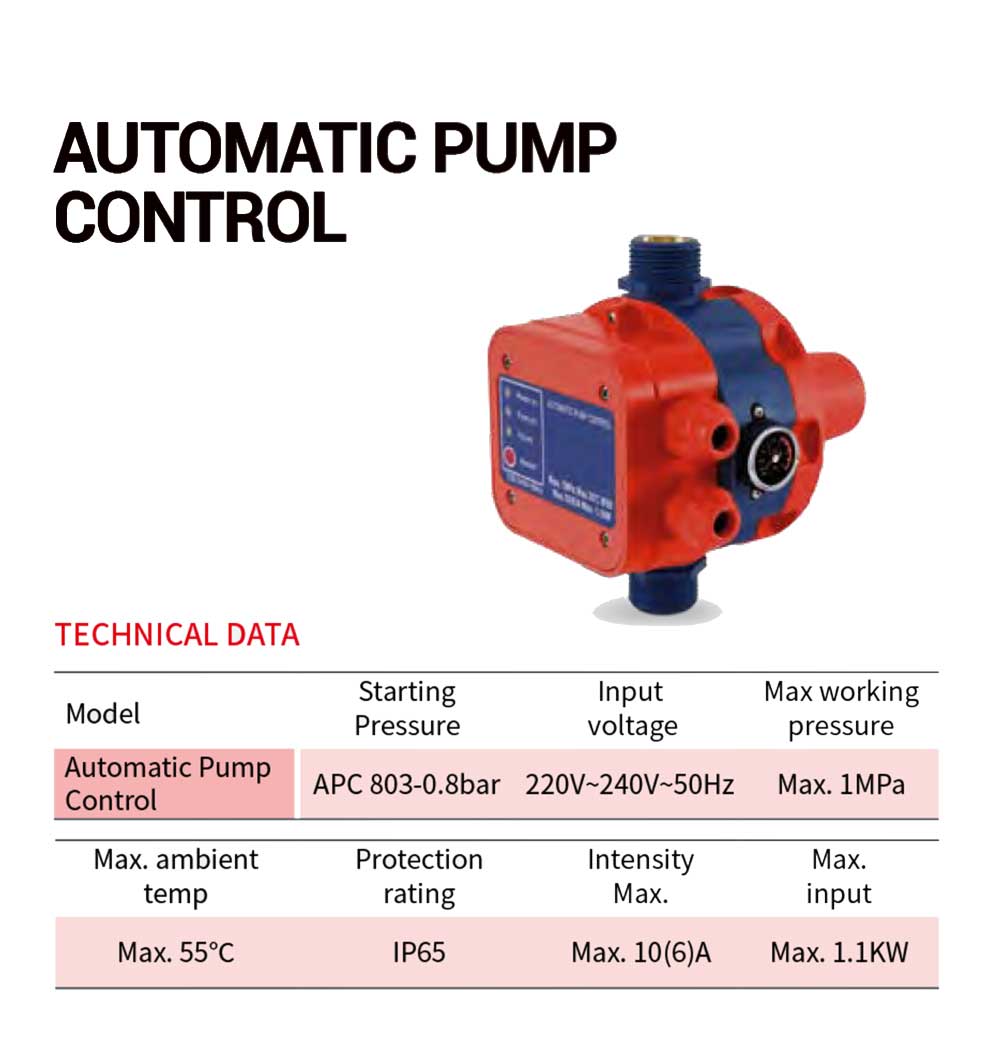

APC-803 0.8 bar	0.8 bar (fixed)	10 bar (1 MPa)	220 – 240 V / 50 Hz	1.1 kW	10 A (6 A inductive)	≤ 55 °C	IP65

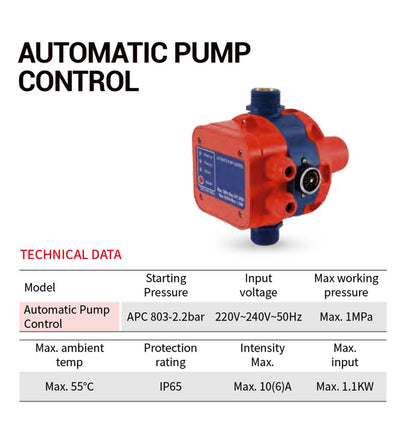

APC-803 2.2 bar	2.2 bar (fixed)	10 bar (1 MPa)	220 – 240 V / 50 Hz	1.1 kW	10 A (6 A inductive)	≤ 55 °C	IP65

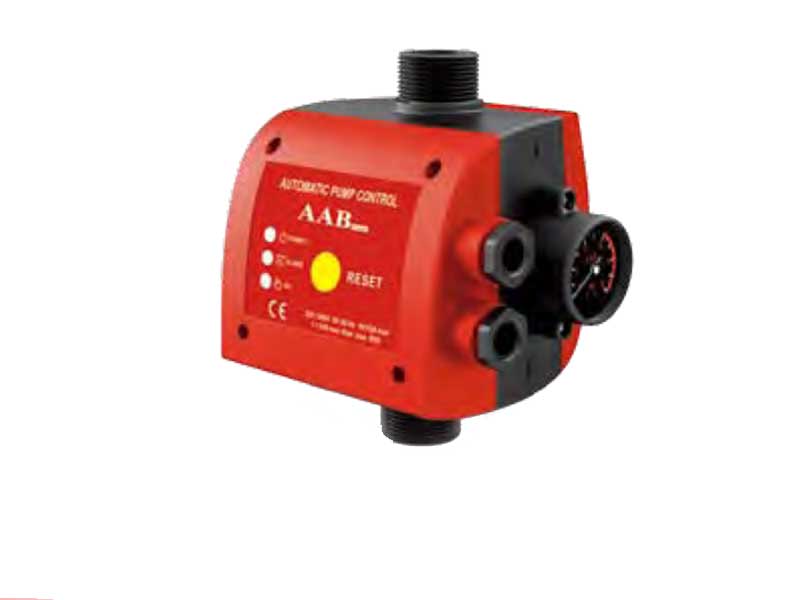

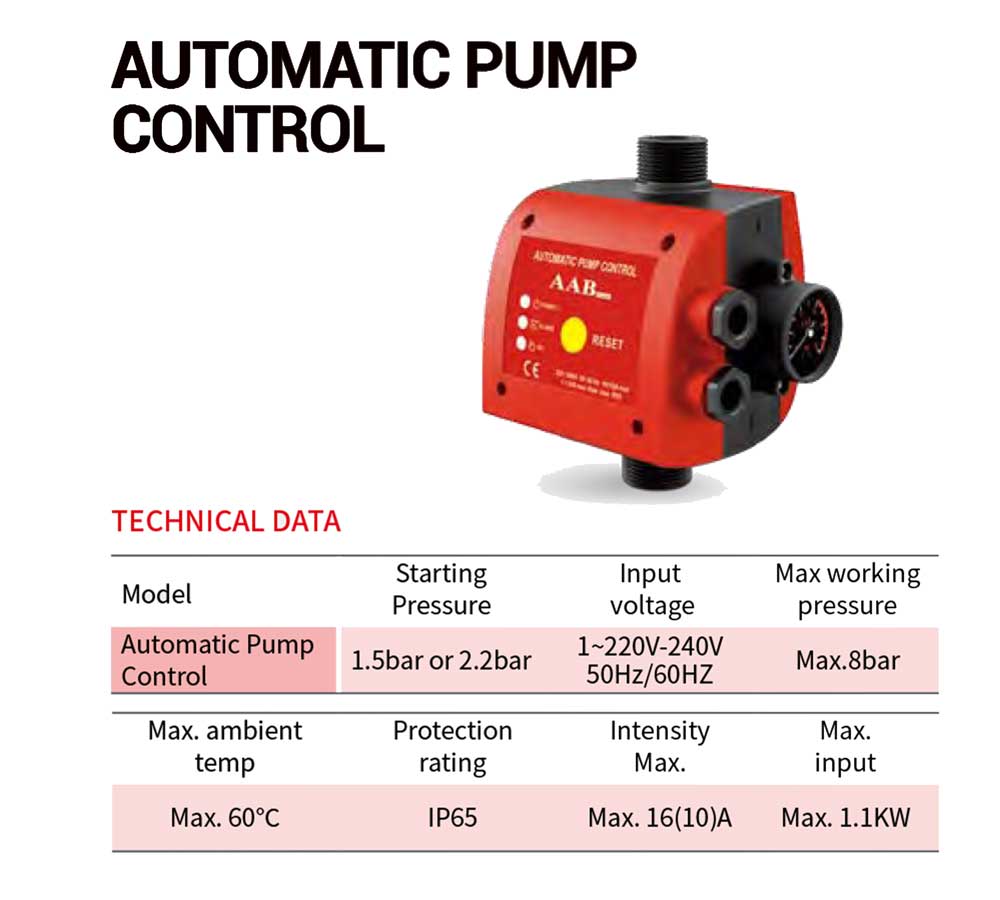

APC-1500/2200	1.5 bar or 2.2 bar (selectable)	8 bar	220 – 240 V / 50–60 Hz	1.1 kW	16 A (10 A inductive)	≤ 60 °C	IP65

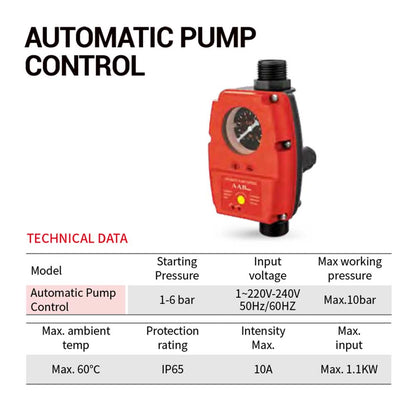

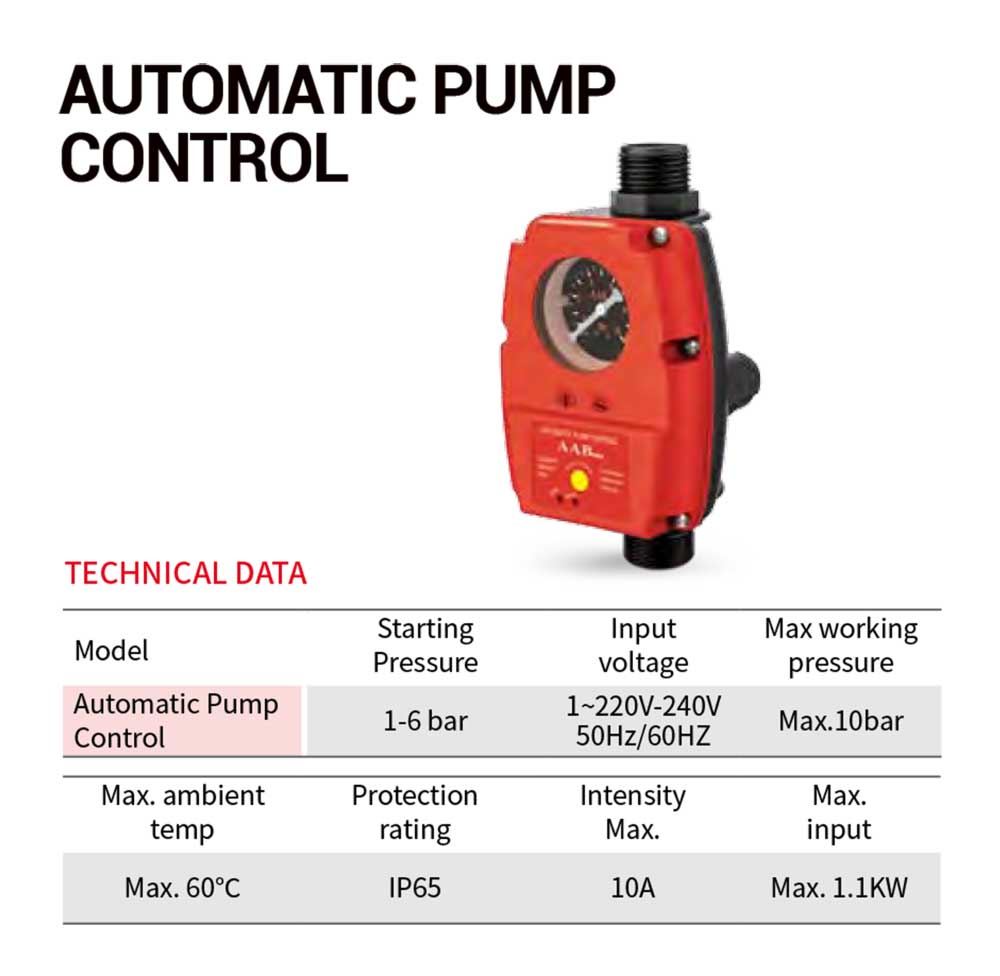

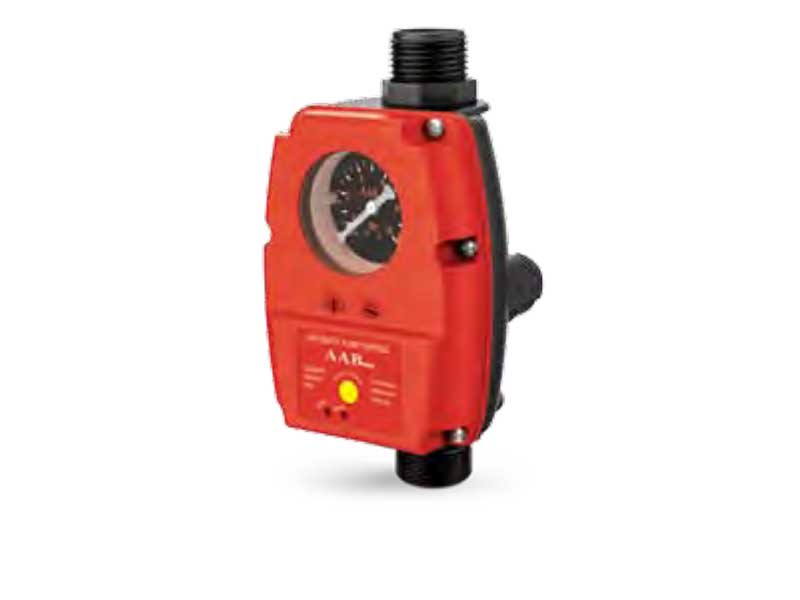

APC-Gauge 1–6 bar	1 – 6 bar (dial adjustable)	10 bar	220 – 240 V / 50–60 Hz	1.1 kW	10 A	≤ 60 °C	IP65

Mount vertically on the pump discharge line, after any check valve.
No bladder tank required—just install and wire directly to the pump.
Add a pre-filter if your water contains sand or debris.
Use an external contactor for motors > 0.75 kW or when starting current exceeds 10 A.

Need help choosing the right controller? Contact us here — we’ll match the unit to your pump and plumbing system.
