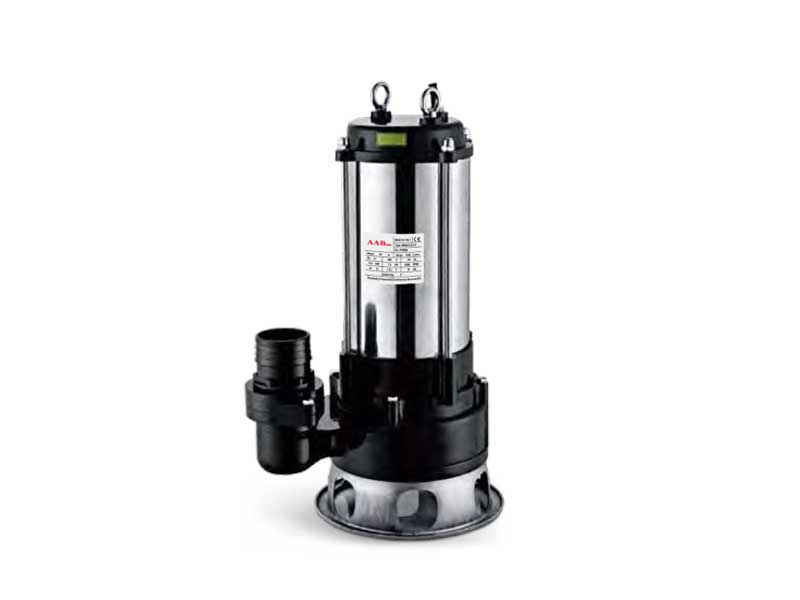

Submersible Pump AWQ25-30-5.5
Submersible Pump AWQ25-30-5.5
Quantity
Ideal Uses & Benefits
- Heavy-duty Construction & Factory Drainage: 5.5 HP motor moves nearly 1 000 L/min, keeping job sites dry and safe.
- Municipal Sewage Lift Stations: Handles solids up to 75 mm outlet size and delivers 39 m head for long force mains.
- Large Residential & Commercial Sumps: Prevents flooding in basements, car parks and equipment pits.
- Aquaculture & Livestock Operations: Stainless body resists corrosion from organic wastewater and fertilisers.
- Emergency Flood Control: Submersible, self-priming design drops straight into pits—no suction lift required.
Pump Specifications
| Model | AWQ25-30-5.5 |
| Power | 5.5 HP / 4.0 kW |
| Outlet Diameter | 75 mm |
| Voltage / Frequency | 380 V / 50 Hz (three-phase) |
| Max. Flow | 980 L/min (≈ 59 m³/h) |
| Max. Head | 39 m |
| Max. Solid Diameter | Up to 30 mm |
| Weight (G.W.) | 70 kg |
| Dimensions (L × W × H) | 42.0 × 34.0 × 69.0 cm |
Construction & Protections
- Stainless-steel pump body—corrosion-resistant for sewage, slurry and grey-water duty.
- Max. immersion depth : 5 m | Max. liquid temperature : 40 °C.
- Liquid pH range : 4 – 10 | Max. liquid density : 1.2 × 10³ kg/m³.
Motor Features
- Copper winding for high efficiency.
- Built-in thermal protector—automatically shuts off if overheated.
- Stainless-steel welded shaft, insulation class F, protection class IPX8 (continuous submersion).
Need help confirming suitability or arranging bulk pricing? Contact us here and our sewage-pump specialists will respond promptly.
