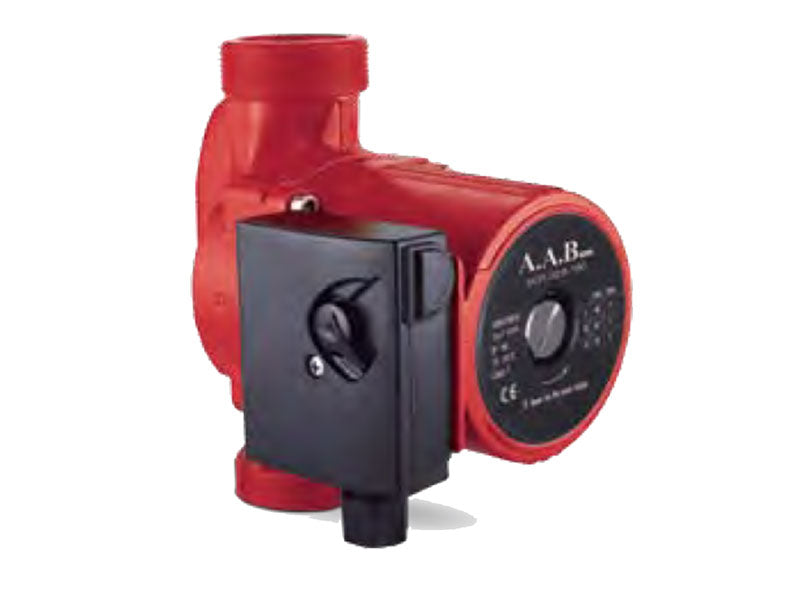

CIRCULATION PUMP 32/90 and 32/100
CIRCULATION PUMP 32/90 and 32/100
Quantity
APS32 Series – Circulation Pumps
The APS32/90X and APS32/100X are high-performance cast iron circulation pumps engineered for efficient and quiet operation in hydronic heating and cooling systems. These pumps are ideal for residential and commercial installations requiring continuous water flow.
Applications
- Underfloor heating systems
- Radiator and boiler circulation
- Hot water recirculation in HVAC
- Commercial and residential heating systems
Construction Features
- Cast iron pump housing
- NSK ball bearings for long life
- Ceramic/Carbon mechanical seal
- 100% copper winding motor (Class F)
- Flange-mounted installation
Technical Specifications
| Model | Power (W) | Max Head (m) | Max Flow (L/min) | Inlet/Outlet |
|---|---|---|---|---|
| APS32/90X | 250 / 210 / 160 | 9 / 7 / 5 | 160 / 110 / 70 | 1.5″ / 2″ |
| APS32/100X | 300 / 240 / 180 | 10 / 8 / 5 | 170 / 110 / 70 | 1.5″ / 2″ |
Operating Conditions
- Medium: Clean water or glycol-water mixtures
- Temperature range: up to 110°C
- Max operating pressure: 10 bar
- Installation orientation: Horizontal or vertical
- Protection class: IP44
Need help choosing between APS32/90X and APS32/100X? Contact our technical team for assistance with sizing, installation, or application questions.
