PERIPHERAL PUMP- AXP50S
PERIPHERAL PUMP- AXP50S
Quantity

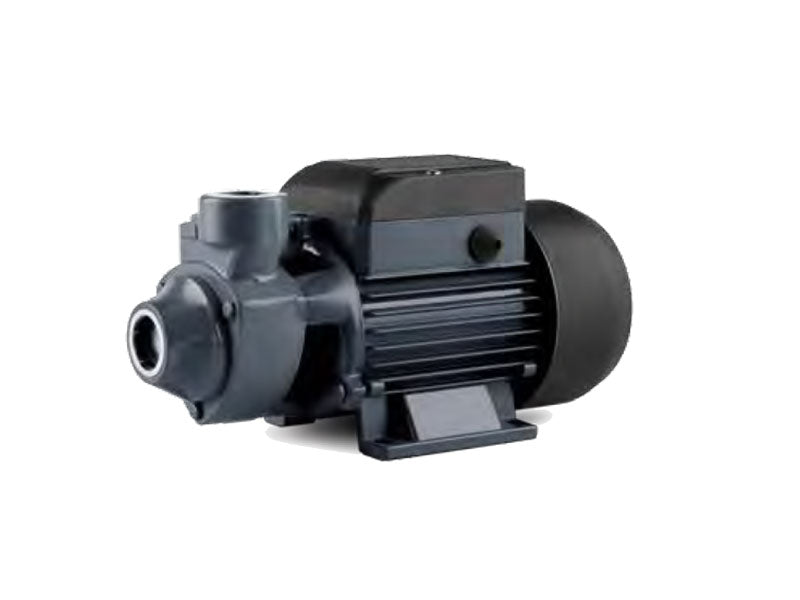

AXP50S – Peripheral Pump
The AXP50S is a compact peripheral pump designed for domestic water supply, boiler feed, pressure boosting, and small-scale irrigation. Its brass impeller ensures strong water flow, while the small footprint allows easy installation in tight spaces.
Applications
- Clean water supply for homes and apartments
- Boiler feed and pressurization systems
- Domestic water boosting
- Small irrigation and sprinkler setups
- Hot and cold water circulation
Technical Specifications
| Model | Power (HP) | Power (kW) | Current (A) | Inlet × Outlet | Max Head (m) | Max Flow (L/min) |
|---|---|---|---|---|---|---|
| AXP50S | 0.5 | 0.37 | 2 | 1" × 1" | 35 | 40 |
Performance Curve
- Flow range: 0–40 L/min
- Total head: up to 35 m
- Optimized for high-pressure low-flow conditions
Construction Features
- Pump casing: Cast iron
- Impeller: Brass
- Mechanical seal: Ceramic/Graphite/NBR
- Shaft: Stainless steel
- Motor: Copper winding with IP44 protection
Need help choosing the right peripheral pump? Contact us with your requirements for expert support.
