CENTRIFUGAL PUMP-CS-M
CENTRIFUGAL PUMP-CS-M
Quantity

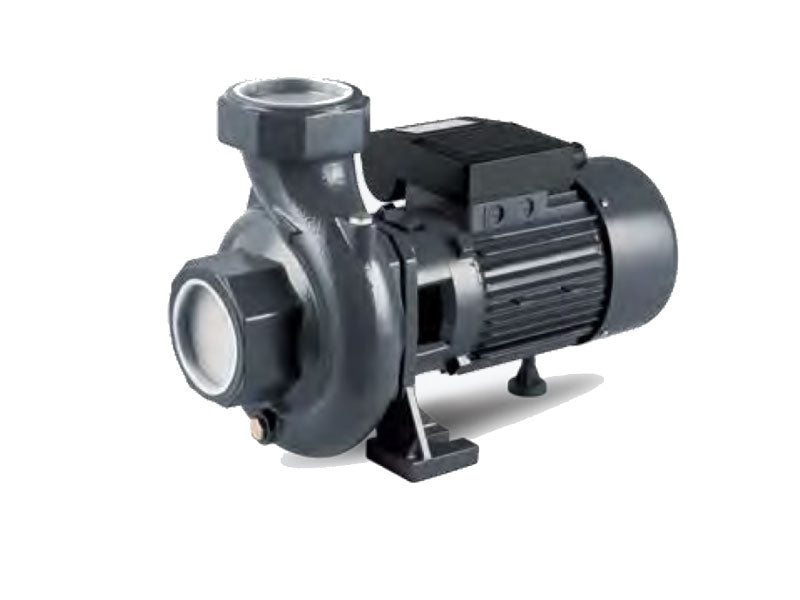

CS-M Series – Centrifugal Pumps
The CS-M centrifugal pump series is designed for high-volume water transfer applications. With a robust cast iron casing and high flow rates, these pumps are ideal for commercial, agricultural, and industrial water movement systems.
Applications
- High-capacity water transfer
- Irrigation and sprinkler systems
- Flood control and drainage
- Cooling and circulation in large-scale systems
- Industrial water supply
Construction Features
- Heavy-duty cast iron casing
- Direct-coupled to standard electric motors
- Back pull-out design for easy maintenance
- Large inlet and outlet (3" × 3") flanged connections
Technical Specifications
| Model | Power (HP) | Power (kW) | Max Head (m) | Max Flow (L/min) | Inlet × Outlet |
|---|---|---|---|---|---|
| CS150M | 1.5 | 1.1 | 5 | 450 | 3" × 3" |
| CS200M | 2.0 | 1.5 | 8 | 500 | 3" × 3" |
| CS300M | 3.0 | 2.2 | 10 | 1000 | 3" × 3" |
Operating Parameters
- Max operating temperature: up to 90°C
- Operating frequency: 50 Hz
- Motor insulation class: F
- Protection class: IP55
All pumps in this series follow ISO performance curves and are suitable for clean water or other non-corrosive fluids.
Need help selecting a CS-M model? Contact our team for expert sizing and installation recommendations.
