SELF PRIMING PUMP- PTL
SELF PRIMING PUMP- PTL
Quantity

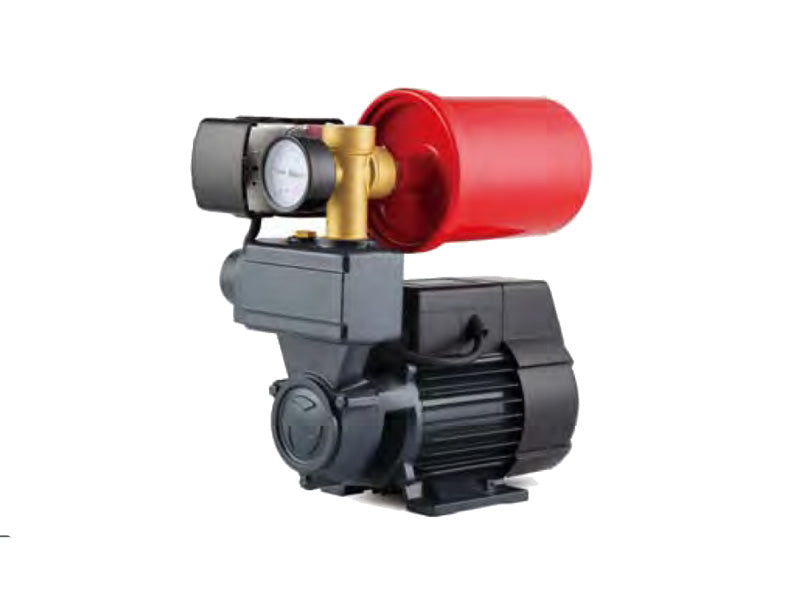

PTL Series – Self-Priming Pump
The PTL Series is a compact and efficient self-priming pump designed for domestic water supply, boosting applications, and garden irrigation. With stainless steel internal components and durable construction, this pump ensures long service life and reliable performance.
Applications
- Household water supply
- Garden and landscape irrigation
- Small-scale clean water transfer
- Water boosting systems for residential use
Technical Specifications
| Model | Power (HP) | Power (kW) | Current (A) | Inlet × Outlet | Max Head (m) | Max Flow (L/min) |
|---|---|---|---|---|---|---|
| PTL60 | 0.5 | 0.37 | 2.5 | 1" × 1" | 28 | 42 |
Operating Conditions
- Clean water or fluids with similar physical properties
- Max suction head: 9 m
- Max liquid temperature: 40°C
- Ambient temperature up to 40°C
Construction Materials
- Pump casing: Stainless steel or anti-rust treated iron
- Impeller: Brass or stainless steel
- Mechanical seal: Ceramic/Carbon/NBR
- Motor winding: 100% copper
Need help with PTL pump selection? Contact our team with your flow/head requirements and application details.
