Stainless Steel Pumps
STAINLESS STEEL PUMP-JS
JS Series – Stainless Steel Self-Priming Jet Pumps The JS series is a reliable and efficient self-priming jet pump constructed with stainless steel for clean water supply and boosting applications. Its compact design, durable materials, and consistent hydraulic performance make...

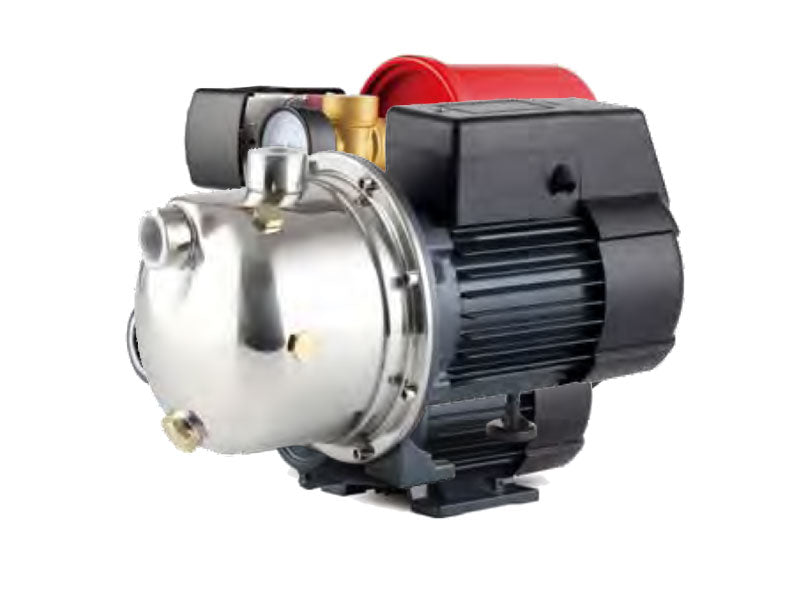

JS Series – Stainless Steel Self-Priming Jet Pumps
The JS series is a reliable and efficient self-priming jet pump constructed with stainless steel for clean water supply and boosting applications. Its compact design, durable materials, and consistent hydraulic performance make it ideal for homes, irrigation systems, and small industrial setups.
Applications
- Clean water supply for households and buildings
- Booster systems for villas and gardens
- Light-duty irrigation and sprinkler systems
- Washing systems and domestic water transfer
Construction Features
- Self-priming jet pump with stainless steel components
- Equipped with nozzle and venturi system for high suction lift
- Designed for continuous duty operation
- Quiet motor with low maintenance requirements

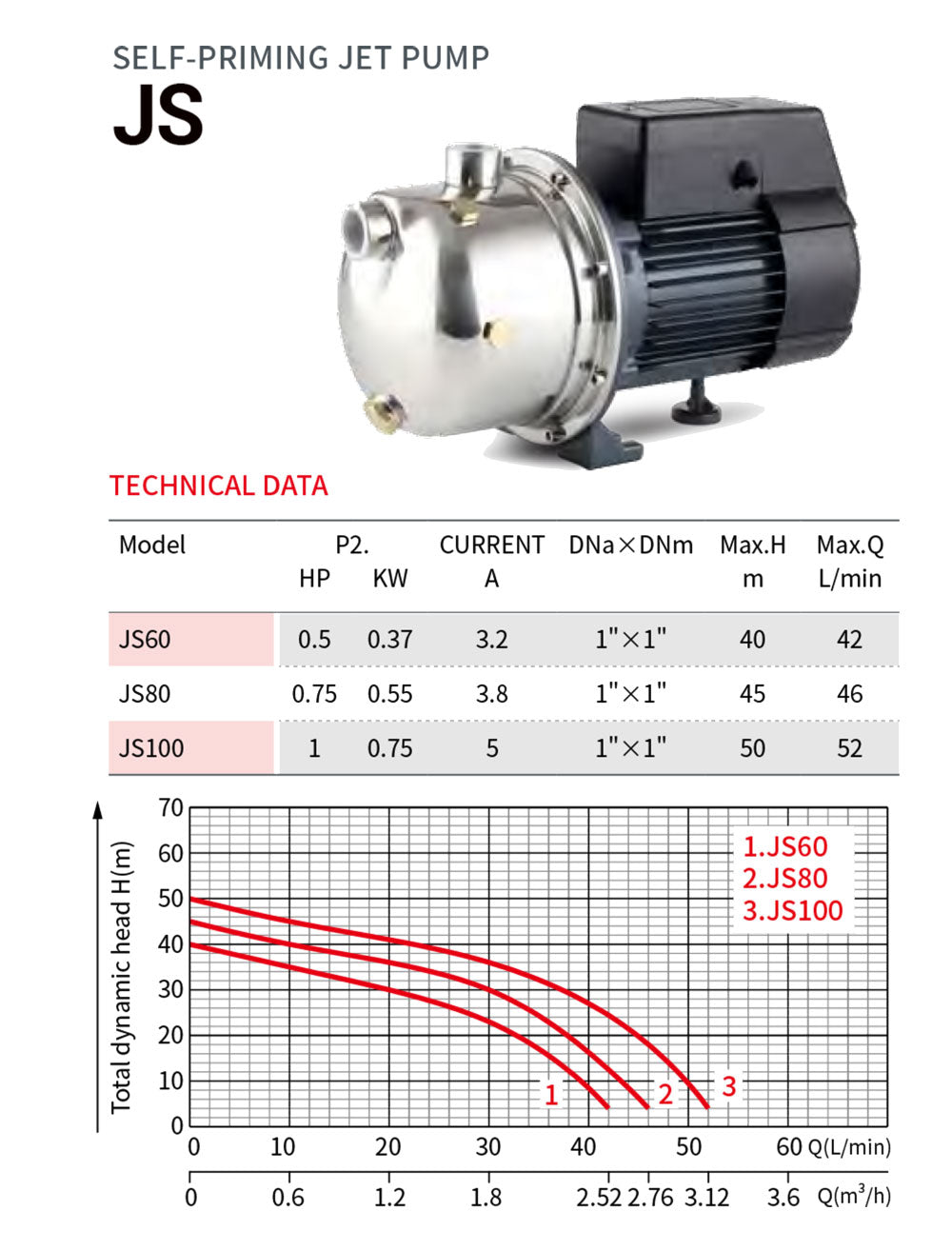

Technical Specifications
| Model | Power (HP) | Power (kW) | Max Head (m) | Max Flow (L/min) | Inlet × Outlet |
|---|---|---|---|---|---|
| JS60 | 0.5 | 0.37 | 40 | 42 | 1" × 1" |
| JS80 | 0.75 | 0.55 | 45 | 46 | 1" × 1" |
| JS100 | 1.0 | 0.75 | 50 | 52 | 1" × 1" |
Operating Conditions
- Medium: Clear water or liquids with similar physical properties
- Temperature range: 0°C to +40°C
- Max suction head: 9 m
- Max ambient temperature: 40°C
Material Configuration
- Pump body: Stainless steel
- Impeller: Stainless steel
- Mechanical seal: Ceramic/Carbon/NBR
- Shaft: Stainless steel
- Motor: Aluminum housing with copper winding
Need help selecting the right JS pump? Contact our team with your application details and we’ll recommend the ideal model.
