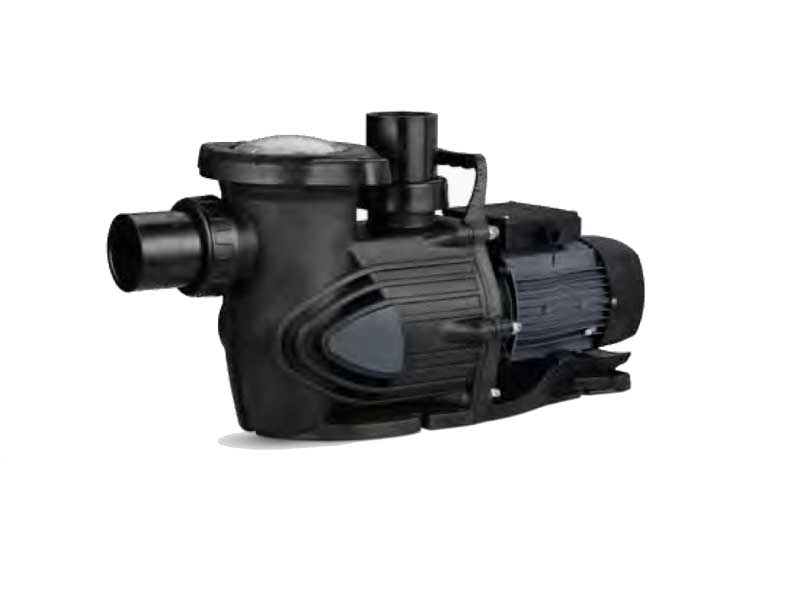

Swimming Pool Pump PPA50-400
Swimming Pool Pump PPA50-400
Quantity
Ideal Uses & Benefits
- Large Residential Pools (90 – 150 m³): A 4 HP motor turns over big volumes quickly, keeping water crystal clear with shorter run-times.
- Hotel, Resort & Public Pools: Heavy-duty build handles long daily operating hours and heavy bather loads without overheating.
- Waterparks & Lazy Rivers: High flow—up to 650 L/min (≈ 39 m³/h)—drives slides, splash pads, and rapid-current attractions.
- Commercial Fountains & Features: 26.8 m head produces dramatic jet heights and powerful cascades.
- Salt-Water & Chlorinated Systems: Corrosion-resistant thermoplastic housing and stainless-steel shaft ensure long service life.

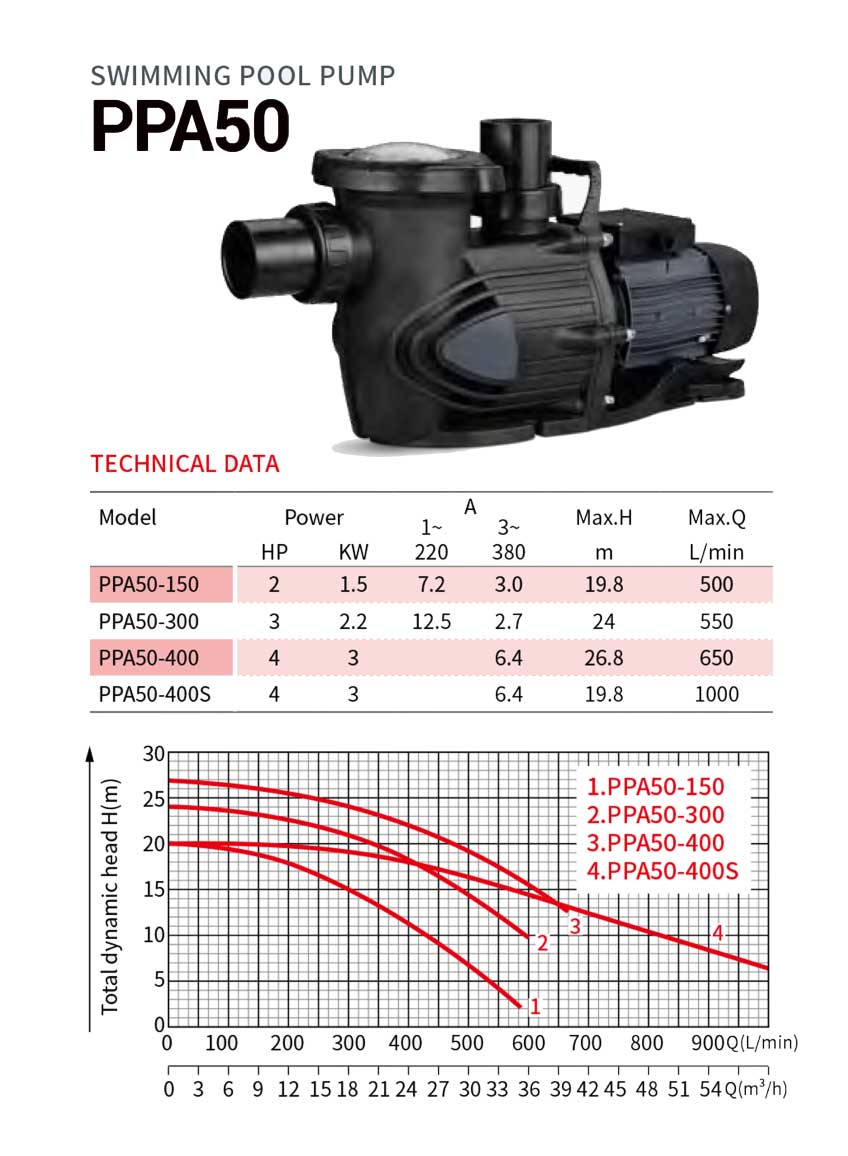

Pump Specifications
| Model | Power | Current @ 220 V 1-phase | Current @ 380 V 3-phase | Max Head | Max Flow |
|---|---|---|---|---|---|
| PPA50-400 | 4 HP / 3 kW | N/A * | 6.4 A | 26.8 m | 650 L/min (≈ 39 m³/h) |
* 4 HP models are typically wired for three-phase supply. Contact us if you require single-phase options.
Key Features
- Tough glass-filled thermoplastic body—lightweight, corrosion-proof, and built to last.
- Oversized strainer basket with clear lid: fewer clean-outs and instant debris inspection.
- Stainless-steel motor shaft with double mechanical seal for leak-free performance.
- Integral thermal overload protector guards against overheating during continuous duty.
- Union fittings for quick connection to standard 63 mm (2½″) or 75 mm (3″) pipework.
- IP55-rated motor enclosure for dependable outdoor operation.
Need help confirming compatibility or planning a bulk order? Contact us here and our pump specialists will respond quickly.
