PERIPHERAL PUMPS-AXP60/75/100S

PERIPHERAL PUMPS-AXP60/75/100S

TYPE

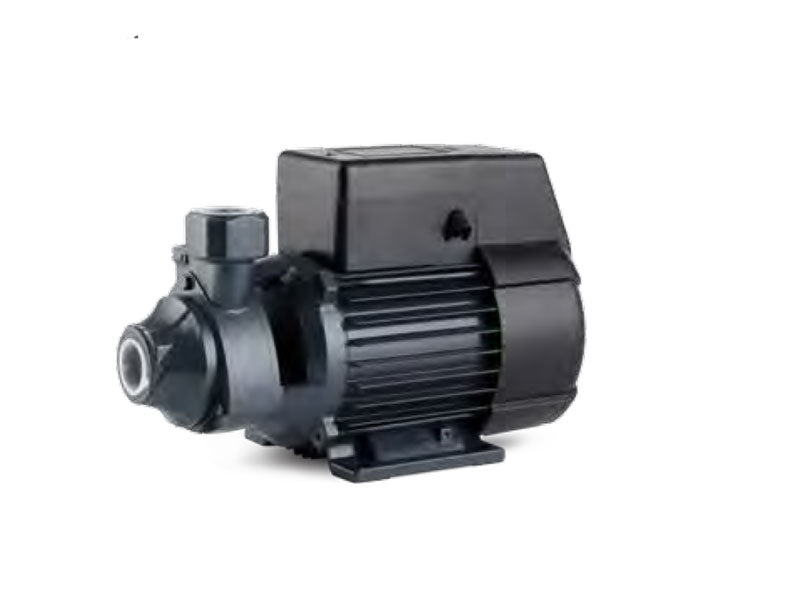

AXP Series – Peripheral Pumps (AXP60S / 75S / 80S / 100S)

The AXP Series is a range of compact, high-pressure peripheral pumps designed for clean water transfer, pressure boosting, and domestic water supply. With their brass impellers and space-saving construction, they are ideal for applications requiring high head and moderate flow.

Applications

  • Domestic water boosting systems
  • Hot and cold clean water circulation
  • Pressure maintenance in boiler feed systems
  • Small-scale irrigation and sprinkler supply
  • Water transfer for residential and commercial use

Construction Features

  • Pump body: Cast iron with anti-rust coating
  • Impeller: Brass (peripheral type)
  • Mechanical seal: Ceramic/Carbon/NBR
  • Motor: Copper winding, air-cooled, aluminum housing
  • Protection class: IP44
  • Insulation class: B

Technical Specifications

Model Power (HP) Power (kW) Voltage Max Head (m) Max Flow (L/min) Inlet × Outlet
AXP60S 0.5 0.37 220V 38 42 1" × 1"
AXP75S 0.75 0.55 220V 45 48 1" × 1"
AXP80S 1.0 0.75 220V 50 50 1" × 1"
AXP100S 1.5 1.1 220V 60 55 1" × 1"

Operating Conditions

  • Liquid type: Clean water (non-corrosive, non-flammable)
  • Max liquid temperature: 60°C
  • Max ambient temperature: 40°C
  • Max suction head: 8 m

Need help selecting the right AXP model? Contact our technical team for personalized guidance based on your pressure and flow requirements.
