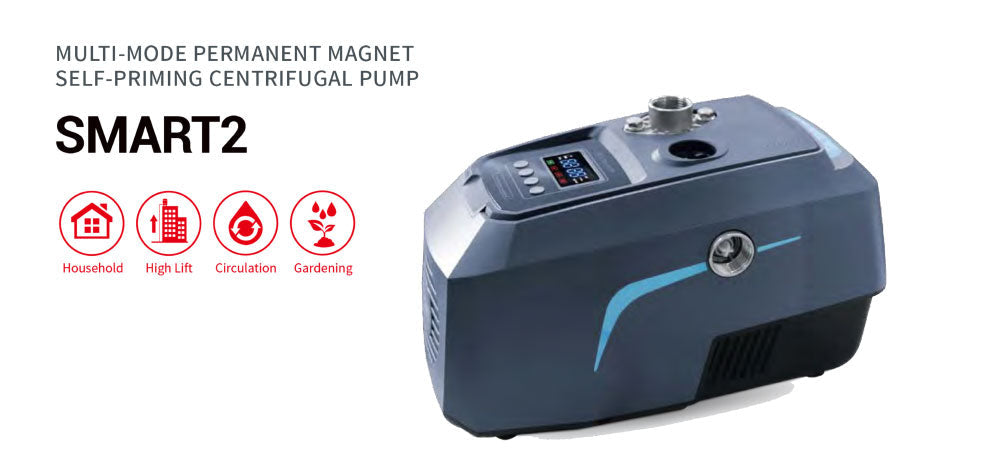

SMART2 – Multi-Mode Permanent Magnet Self-Priming Centrifugal Pump
The SMART2 series is an intelligent automatic pressurization unit featuring a permanent magnet motor, inverter control, and a stainless-steel pressure tank. It is specifically designed for modern residential, commercial, and agricultural pressurization needs, offering silent operation, ease of use, and compact structure.
Applications
- Water supply for high-rise buildings and residential villas
- Public facilities: hospitals, gyms, malls, airports, offices, and salons
- Agriculture: gardens, greenhouses, farms
- Manufacturing: food and beverage, washing systems, industrial water supply
Key Features
- Permanent magnet motor with 85% efficiency
- Wide voltage compatibility (160–250V)
- Frequency inverter control up to 60 Hz for silent operation
- Dual control modes: automatic and manual
- Built-in soundproofing and compact aluminum motor housing
- Stainless steel diaphragm pressure tank
Material Composition
- Pump body: MPPO
- Impeller: MPPO
- Mechanical seal: Ceramic/Graphite (Italy)
- Shaft: Stainless steel
- Bearings: NSK
- Motor housing: Aluminum alloy
- Sensor: Pressure type

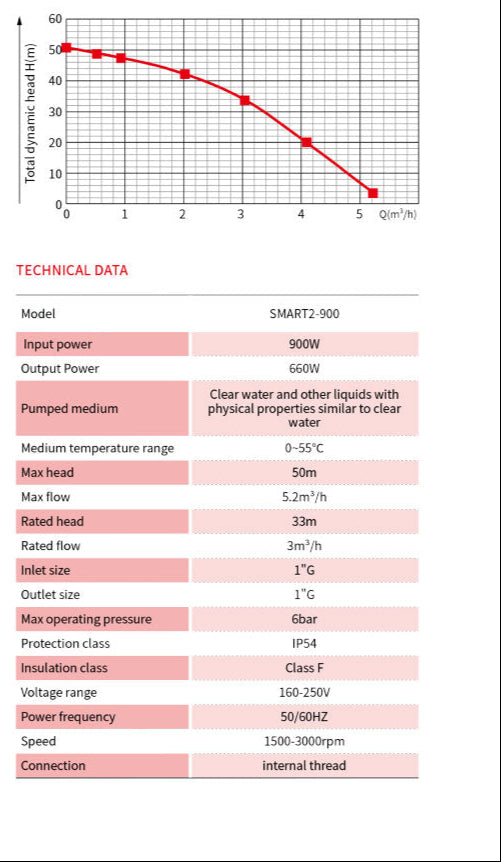

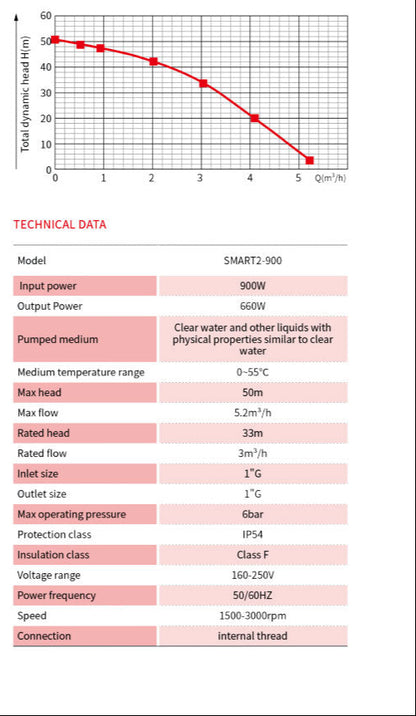

Technical Data
| Model | Input Power | Output Power | Max Head | Max Flow | Rated Head | Rated Flow | Inlet/Outlet | Voltage | Speed | Protection | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SMART2-900 | 900 W | 660 W | 50 m | 5.2 m³/h | 33 m | 3.0 m³/h | 1" G / 1" G | 160–250V | 1500–3000 rpm | IP54 | Class F |
Operating Conditions
- Suitable for clean water and fluids with similar physical properties
- Medium temperature range: 0 – 55°C
- Max operating pressure: 6 bar
- Connection: Internal thread
Looking for an ultra-quiet and efficient water booster for your home or facility? Contact our team to learn if SMART2 is the right fit for your system.
