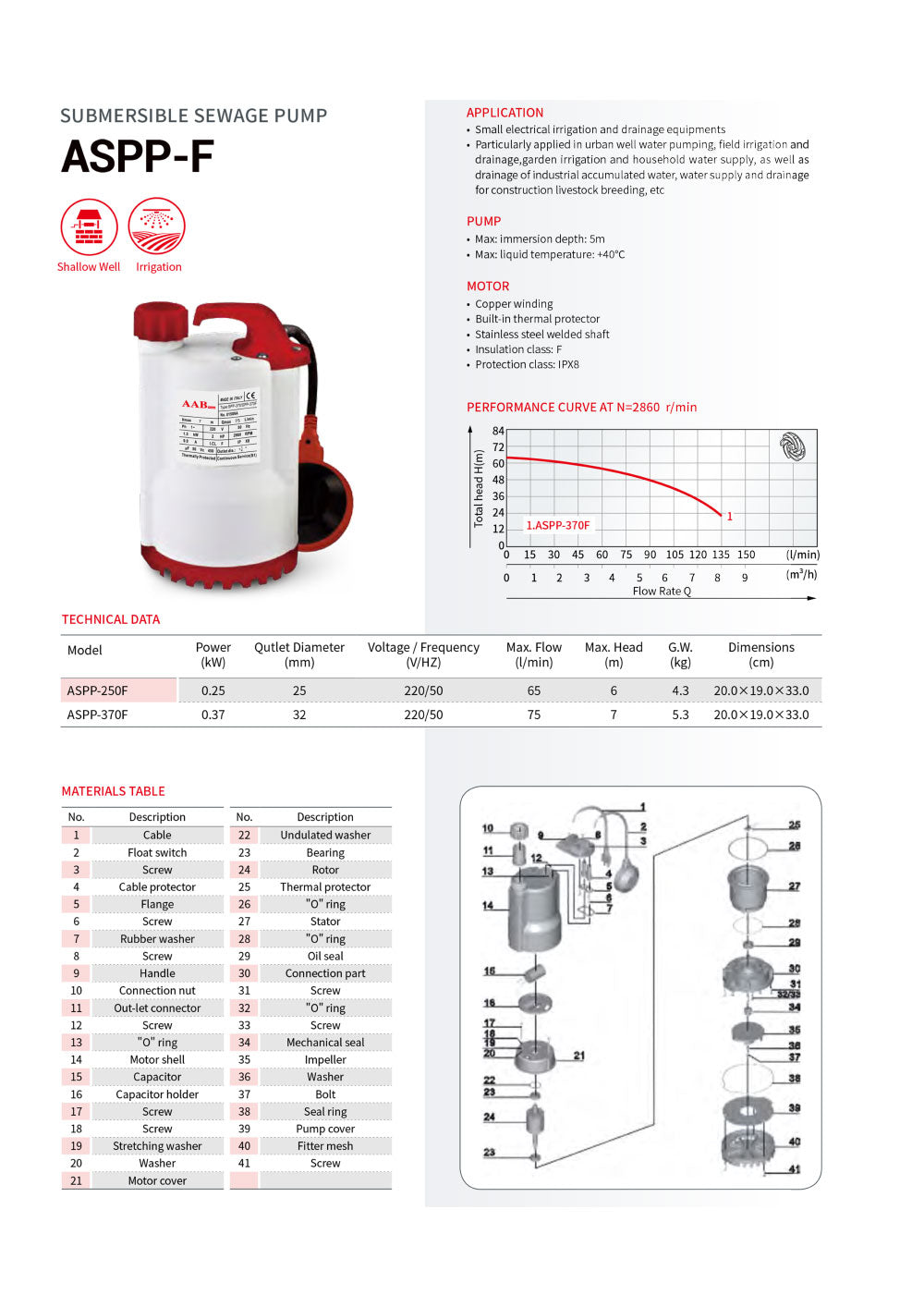

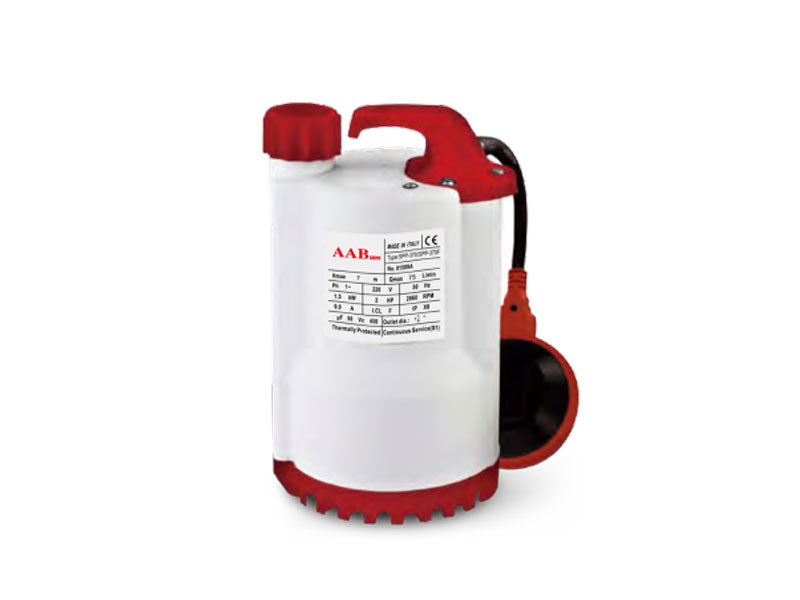

Submersible Sewage Pump – ASPP-F Series
The AAB ASPP-F Series submersible sewage pumps are designed for reliability and performance in small-scale drainage, irrigation, and household wastewater applications. Compact yet powerful, these pumps are ideal for shallow wells and light-duty liquid transfer tasks.
Applications
- Small electrical irrigation and drainage equipment
- Urban water lifting and household wastewater removal
- Field and garden irrigation
- Drainage of industrial accumulated water
- Water supply and drainage for construction and livestock operations
Pump Specifications
- Maximum immersion depth: 5 meters
- Maximum liquid temperature: +40°C
Motor Features
- Copper winding motor with built-in thermal protector
- Stainless steel welded shaft
- Insulation class: F
- Protection class: IPX8
Model Specifications
| Model | Power (kW) | Outlet Diameter (mm) | Voltage/Frequency (V/Hz) | Max Flow (L/min) | Max Head (m) | Weight (kg) | Dimensions (cm) |
|---|---|---|---|---|---|---|---|
| ASPP-250F | 0.25 | 25 | 220 / 50 | 65 | 6 | 4.3 | 20.0 × 19.0 × 33.0 |
| ASPP-370F | 0.37 | 32 | 220 / 50 | 75 | 7 | 5.3 | 20.0 × 19.0 × 33.0 |
Note: Both models include internal thermal protection, durable copper windings, and are built for vertical submersion up to 5 meters. Ensure correct voltage and installation depth for best results.
Need help selecting the right pump? Contact our team for technical assistance tailored to your site’s requirements.
