Multi Stage Centrifugal Electric Pump- CMI4
Multi Stage Centrifugal Electric Pump- CMI4
Quantity

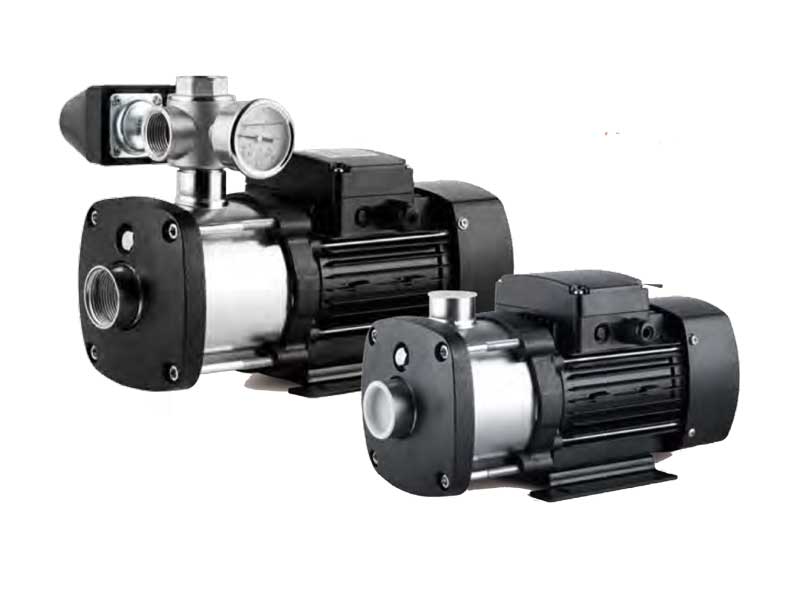

CMI4 Multi-Stage Centrifugal Electric Pump
The CMI4 series is a high-efficiency horizontal multi-stage centrifugal electric pump ideal for clean water supply, pressure boosting, and domestic applications. With full stainless-steel wetted parts and compact dimensions, it delivers quiet operation and long-lasting performance in residential and light commercial setups.
Applications
- Household water supply
- High-lift irrigation
- Booster sets for apartments and villas
- Clean water transfer and circulation
Pump Construction
- Diffuser, impeller, and all wetted parts: Stainless steel SS304
- Insulation class: F
- Protection class: IP55
- Max working pressure: 10 bar
- Working temperature: 15°C to 70°C

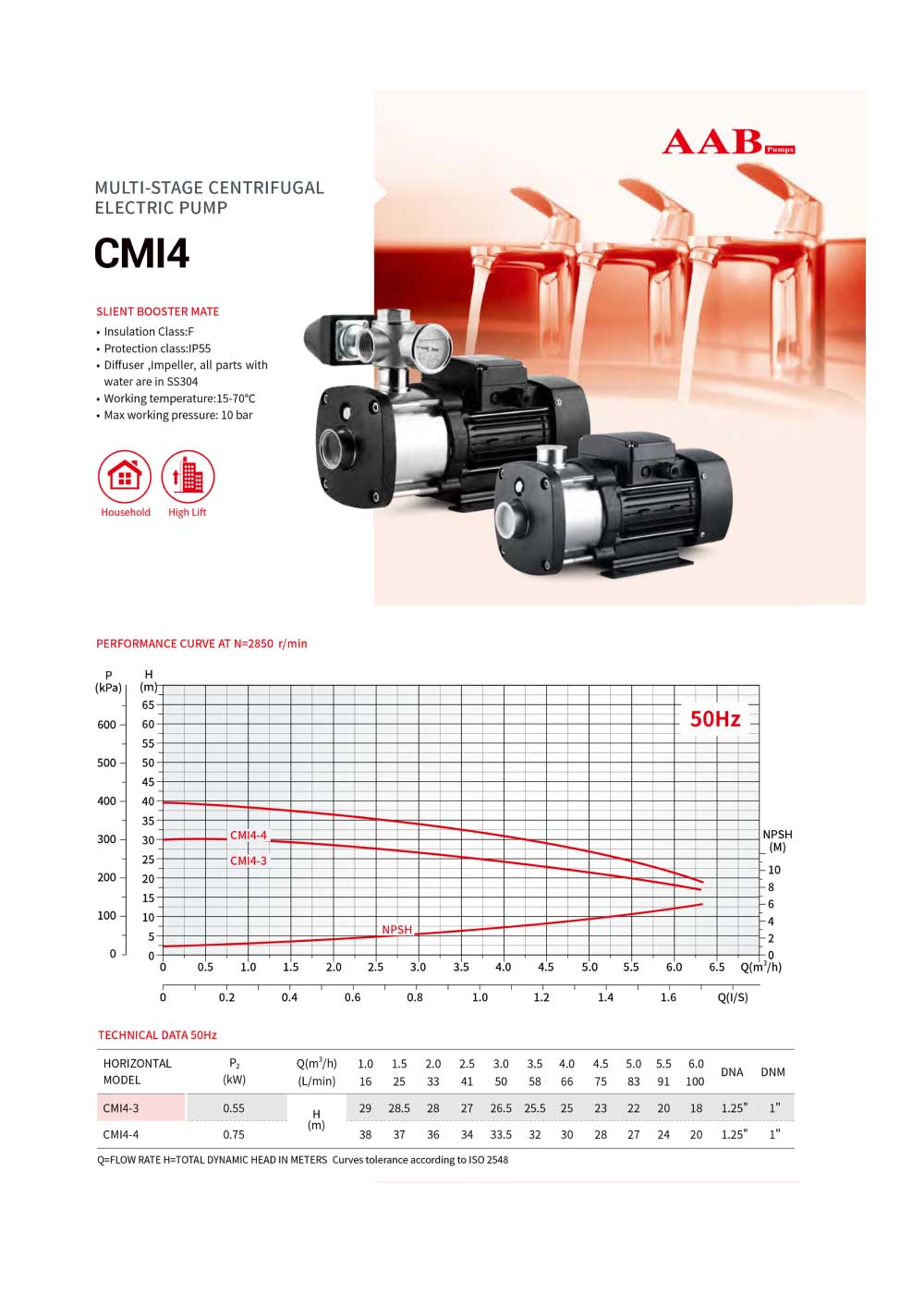

Hydraulic Performance (50Hz)
| Model | Power (kW) | Flow (m³/h) | Flow (L/min) | Total Head (m) |
|---|---|---|---|---|
| CMI4-3 | 0.55 | 1.0 – 6.0 | 16 – 100 | 38 – 18 |
| CMI4-4 | 0.75 | 1.0 – 6.0 | 16 – 100 | 50 – 20 |
Connections
- Inlet (DNM): 1 inch
- Outlet (DNA): 1.25 inches
Notes
- Pump curves are based on performance at 2850 RPM
- Flow rate vs. head varies by application; contact us for sizing assistance
Need help choosing the right model? Contact our team to ensure perfect fit for your water system.
