Multi Stage Centrifugal Electric Pump CMO/MV
Multi Stage Centrifugal Electric Pump CMO/MV
Quantity

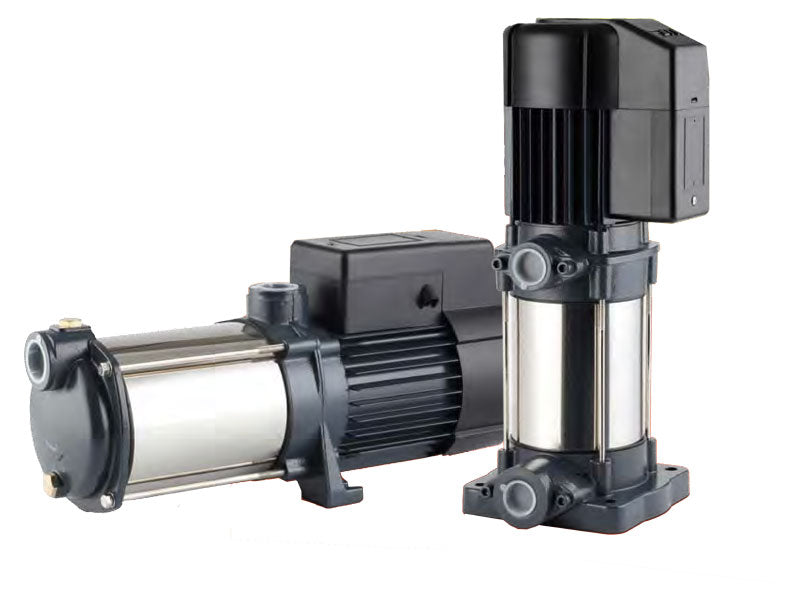

CMO/MV Multi-Stage Centrifugal Electric Pump
The CMO and MV series are horizontal or vertical multi-stage centrifugal pumps designed for high-pressure clean water applications. Featuring anti-rust construction, low noise, and high efficiency, these pumps are suitable for both domestic and commercial systems.
Applications
- Water supply for residential buildings and high-rises
- Small-scale garden and farm irrigation
- Domestic and commercial water boosting
- Cooling and washing systems
- Hotels, cafeterias, shopping malls
Construction Features
- Available in horizontal and vertical designs
- Self-priming function for select models (≤1.3 HP)
- Stainless steel housing with corrosion-resistant coating
- Compact and space-saving design
- Reliable performance and quiet operation
Performance Range
- Flow rate: 10 to 150 L/min
- Total head: 22 m to 99 m

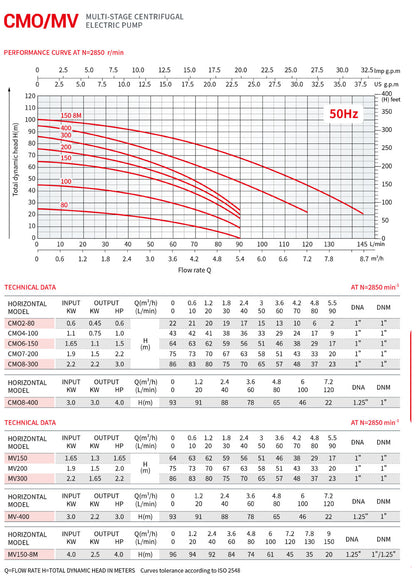

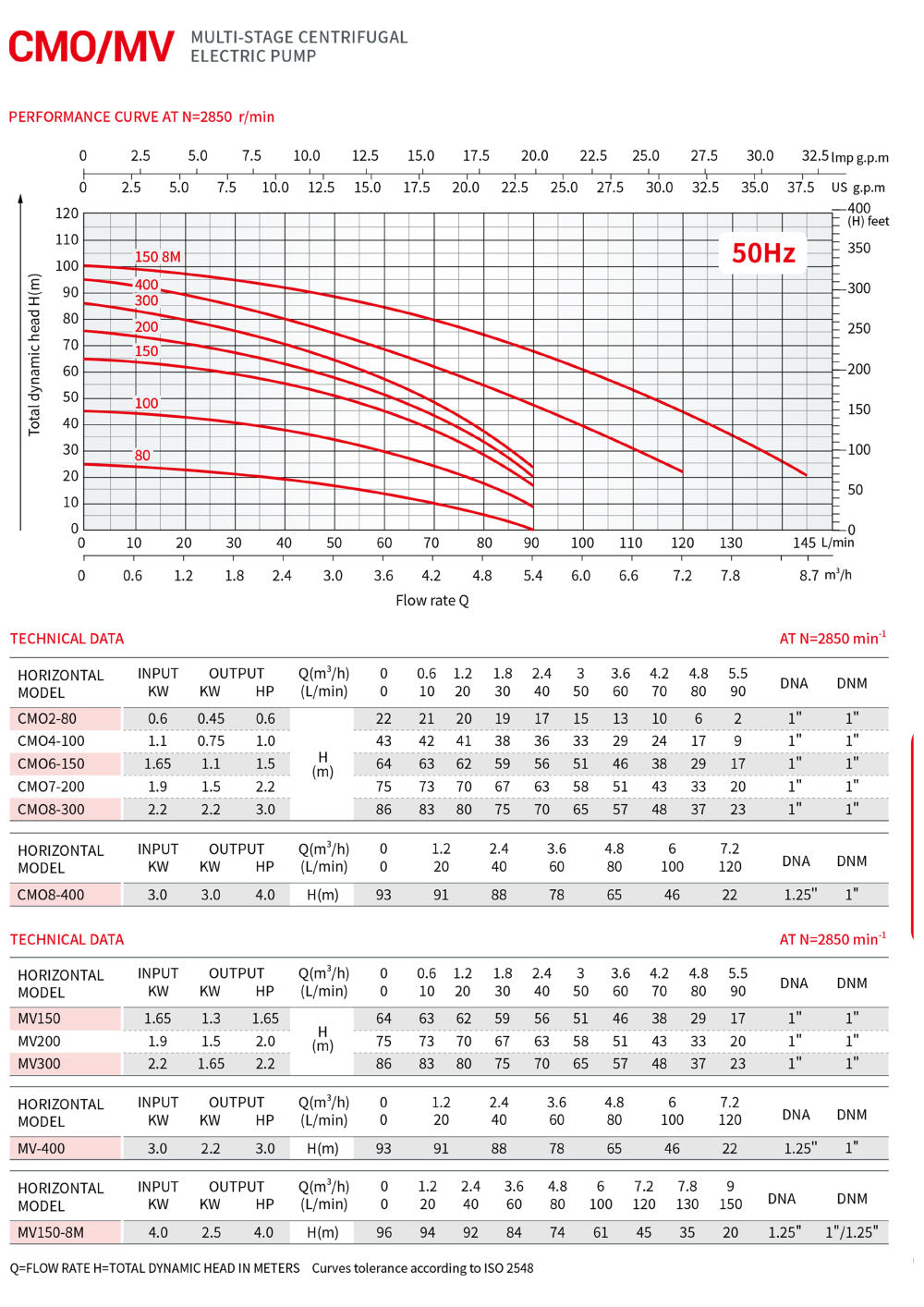

Technical Specifications (at 2850 r/min)
| Model | Power (kW) | Max Head (m) | Flow Range (L/min) | Inlet/Outlet |
|---|---|---|---|---|
| CMO2-80 | 0.6 | 22 | 2 – 100 | 1" / 1" |
| CMO4-100 | 1.0 | 43 | 2 – 100 | 1" / 1" |
| CMO6-150 | 1.5 | 64 | 2 – 100 | 1" / 1" |
| CMO7-200 | 2.2 | 75 | 2 – 100 | 1" / 1" |
| CMO8-300 | 3.0 | 86 | 2 – 100 | 1" / 1" |
| CMO8-400 | 4.0 | 93 | 2 – 100 | 1.25" / 1" |
Model Notes
- All models operate at 2850 RPM and are fitted with stainless steel impellers.
- DNA: Discharge diameter | DNM: Suction diameter
- Curve performance based on ISO 2548 standards
Need assistance selecting the right CMO/MV pump? Contact our technical team with your flow and head requirements.
