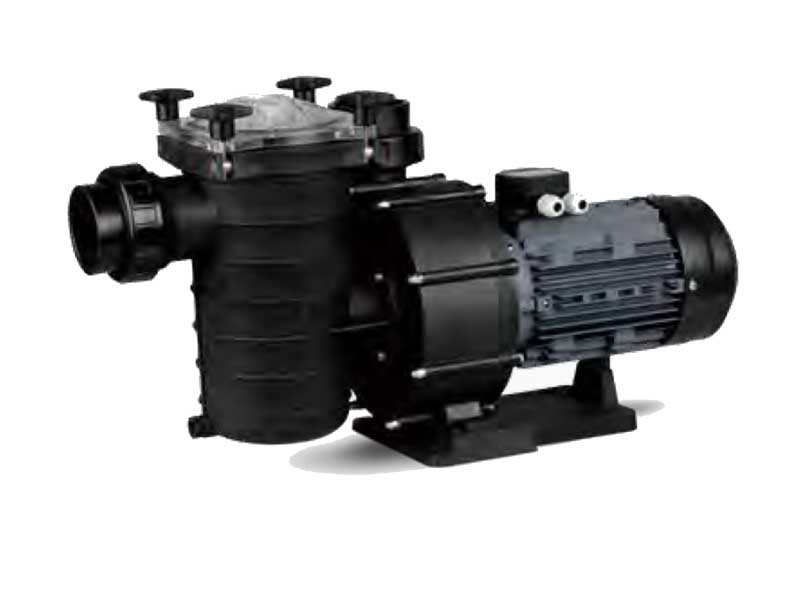

Swimming Pool Pump 3-5.5 HP FCP-A-1
Swimming Pool Pump 3-5.5 HP FCP-A-1
Quantity
Ideal Uses & Benefits
- Large Residential Pools (80 – 200 m³): Powerful motors circulate huge volumes quickly, so you run the pump fewer hours and still keep water sparkling.
- Hotels, Resorts & Municipal Pools: Built for heavy daily duty—perfect for busy commercial facilities with high bather loads.
- Waterparks, Lazy Rivers & Splash Pads: High flow and generous head pressure drive slides, jets and wave generators with ease.
- Aquaculture & Fish Farms: Reliable round-the-clock circulation maintains optimal dissolved-oxygen levels and water clarity.
- Industrial Water Handling: Chemical-resistant housing and extra-large strainer basket make these pumps an excellent fit for process-water transfer and filtering.

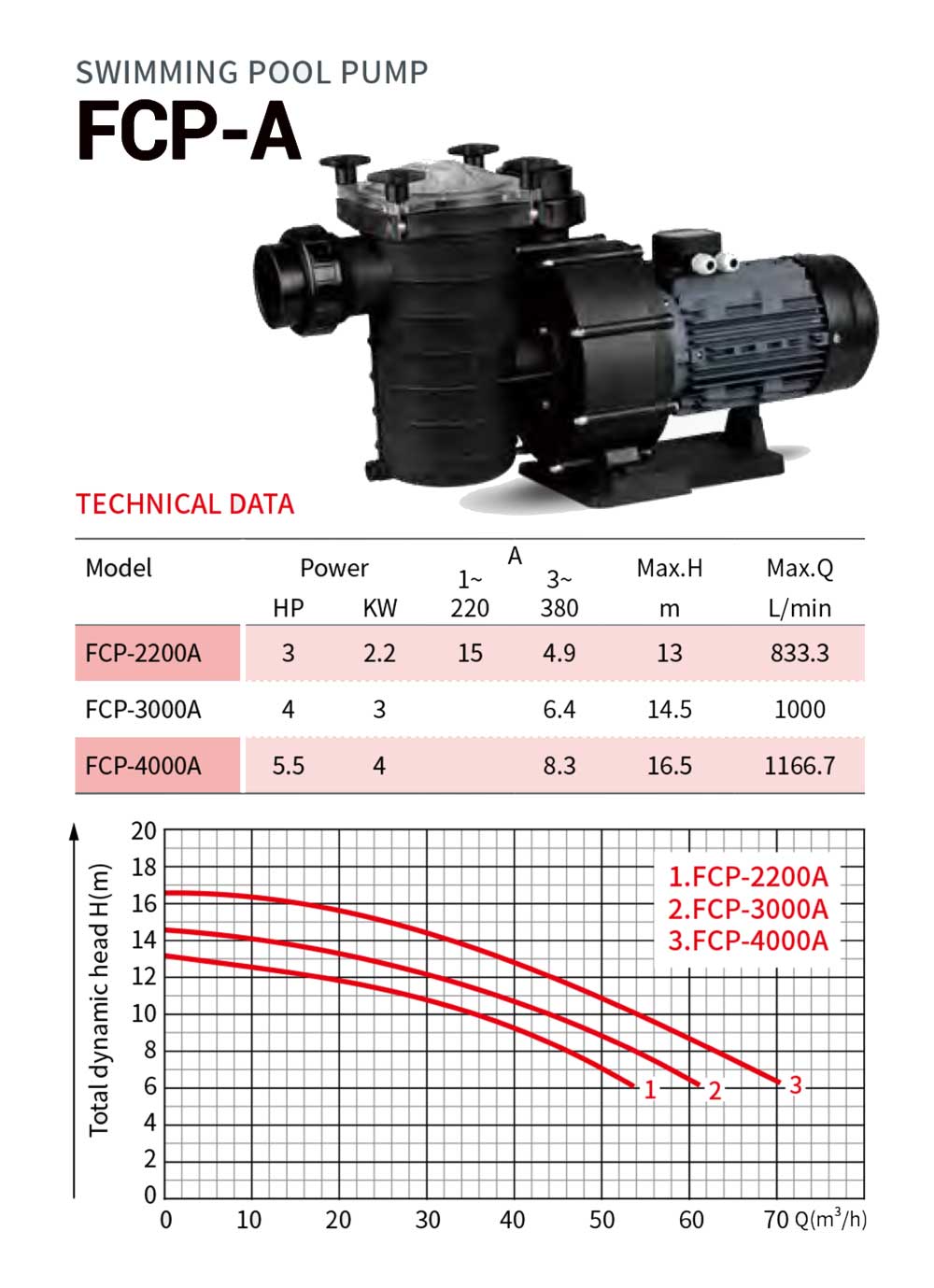

Pump Line-up & Specifications
| Model | Power (HP / kW) | Current @ 380 V 3-phase | Max Head (m) | Max Flow (L/min) | Max Flow (m³/h) |
|---|---|---|---|---|---|
| FCP-2200A | 3 / 2.2 | 4.9 A | 13 | 833 L/min | ≈ 50 m³/h |
| FCP-3000A | 4 / 3 | 6.4 A | 14.5 | 1 000 L/min | ≈ 60 m³/h |
| FCP-4000A | 5.5 / 4 | 8.3 A | 16.5 | 1 167 L/min | ≈ 70 m³/h |
Key Features (All Models)
- Glass-filled thermoplastic housing—lightweight, corrosion-proof, and designed for aggressive pool chemistries.
- Extra-large strainer basket with clear lid for reduced maintenance and instant debris inspection.
- Stainless-steel motor shaft with double mechanical seal for leak-free, long-life operation.
- Thermal overload protection prevents overheating during long service cycles.
- IP55-rated motor enclosure guards against dust and water splashes for dependable outdoor use.
- Union fittings supplied for quick connection to standard 75 mm (3″) or 90 mm (3½″) plumbing (verify size before ordering).
Need help selecting the right model or planning a bulk order? Contact us here and our pump specialists will be happy to advise.
