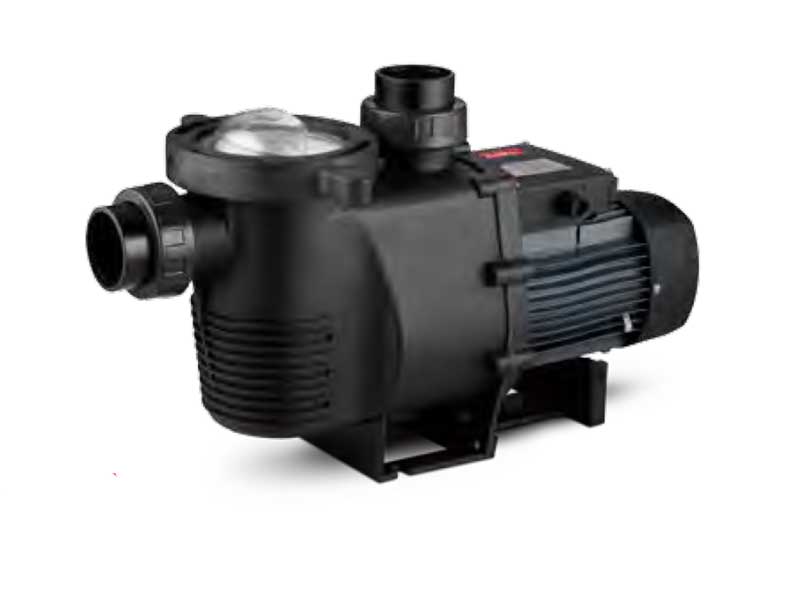

Swimming Pool Pump 1.5 -3 HP FCP-B
Swimming Pool Pump 1.5 -3 HP FCP-B
Quantity
Ideal Uses & Benefits
- Residential Pools (30 – 120 m³): Five power options let you match the pump precisely to pool size, cutting energy waste.
- Hotels, Guesthouses & Community Pools: Quiet, corrosion-proof construction stands up to daily use and harsh chemicals.
- Water Features & Fountains: Up to 22.8 m head delivers impressive jet heights and strong cascade effects.
- Salt-Water Systems: Thermoplastic housing and stainless shaft resist corrosion for longer service life.
- Pool Maintenance: High-flow models speed up backwashing, vacuuming and start-up water turnover.

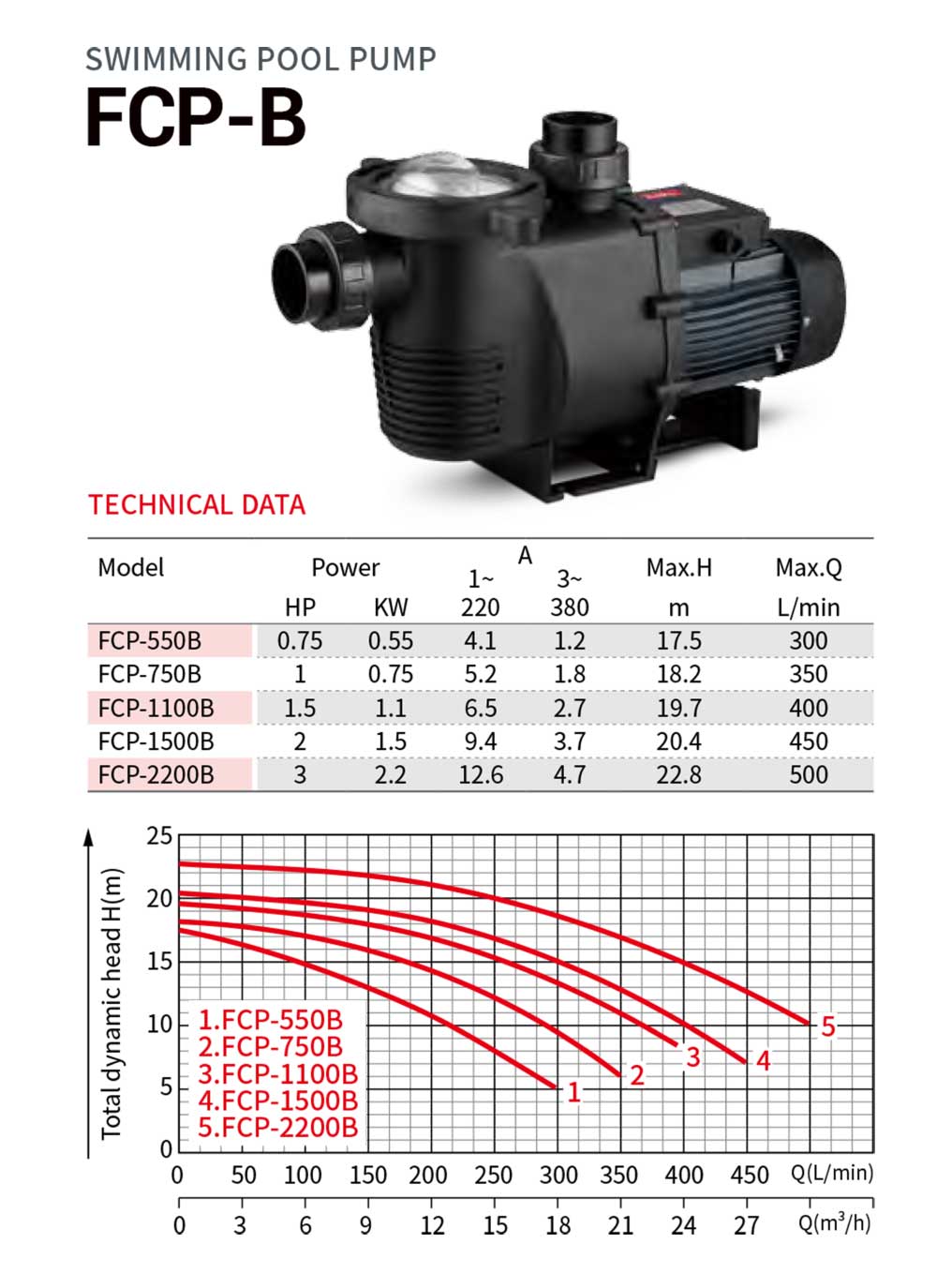

Pump Line-up & Specifications
| Model | Power (HP / kW) | Current @ 220 V 1-ph | Current @ 380 V 3-ph | Max Head (m) | Max Flow (L/min) | Max Flow (m³/h) |
|---|---|---|---|---|---|---|
| FCP-550B | 0.75 / 0.55 | 4.1 A | 1.2 A | 17.5 | 300 | ≈ 18 |
| FCP-750B | 1 / 0.75 | 5.2 A | 1.8 A | 18.2 | 350 | ≈ 21 |
| FCP-1100B | 1.5 / 1.1 | 6.5 A | 2.7 A | 19.7 | 400 | ≈ 24 |
| FCP-1500B | 2 / 1.5 | 9.4 A | 3.7 A | 20.4 | 450 | ≈ 27 |
| FCP-2200B | 3 / 2.2 | 12.6 A | 4.7 A | 22.8 | 500 | ≈ 30 |
Key Features (All Models)
- Glass-filled thermoplastic housing—lightweight, corrosion-proof and UV-resistant.
- Oversized strainer basket with clear lid for longer intervals between clean-outs.
- Stainless-steel motor shaft and double mechanical seal for leak-free longevity.
- Built-in thermal overload protection prevents motor damage under heavy load.
- IP55-rated motor enclosure for outdoor installation in splash zones.
- Union fittings supplied for rapid connection to 50 mm (2″) pipework.
Need help choosing the right FCP-B model or placing a bulk order? Contact us here and our pump specialists will respond promptly.
