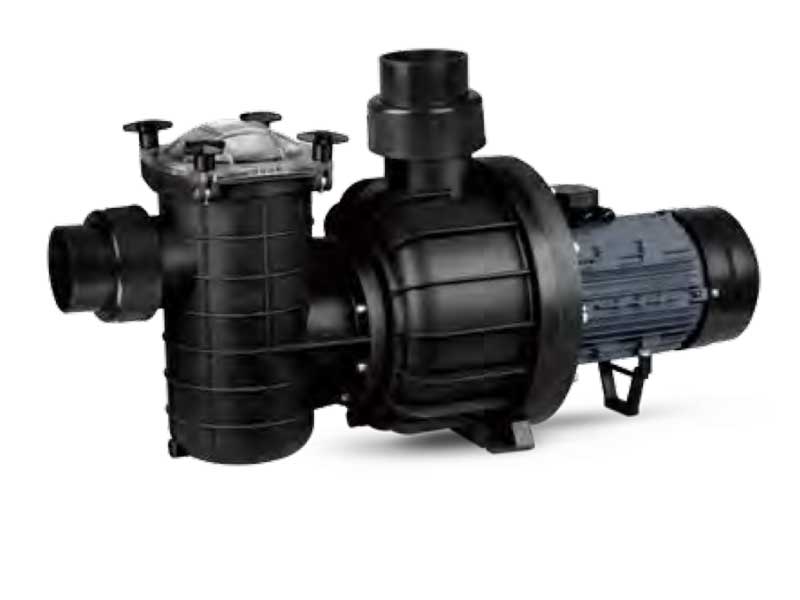

Swimming Pool Pump 5.5- 10 HP FCP-B
Swimming Pool Pump 5.5- 10 HP FCP-B
Quantity
Ideal Uses & Benefits
- Large Resort & Municipal Pools: Robust 5.5 – 10 HP motors keep Olympic-size basins crystal clear with fewer run-hours.
- Waterparks, Wave Pools & Lazy Rivers: Up to 130 m³/h flow drives slides, surf machines, and rapid-current attractions.
- Aquaculture & Fish Farms: High turnover rates deliver superior oxygenation and filtration for healthy stock.
- Industrial Water Handling: Chemical-resistant housing and large strainer basket suit cooling towers and process-water loops.
- Commercial Fountains & Shows: Up to 23 m head creates dramatic jet heights and powerful cascade effects.

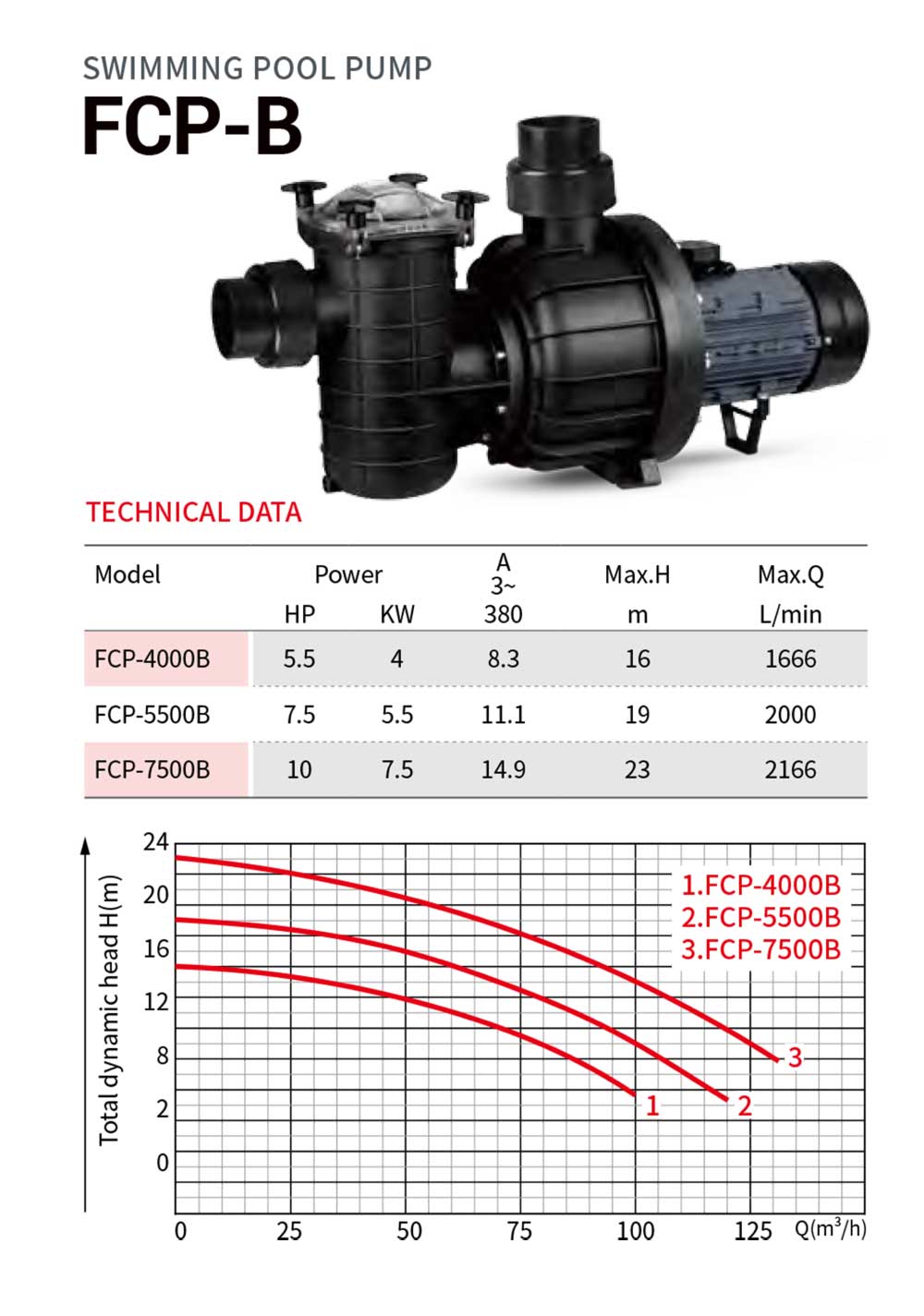

Pump Line-up & Specifications
| Model | Power (HP / kW) | Current @ 380 V 3-ph (A) | Max Head (m) | Max Flow (L/min) | Max Flow (m³/h) |
|---|---|---|---|---|---|
| FCP-4000B | 5.5 / 4 | 8.3 | 16 | 1 666 | ≈ 100 |
| FCP-5500B | 7.5 / 5.5 | 11.1 | 19 | 2 000 | ≈ 120 |
| FCP-7500B | 10 / 7.5 | 14.9 | 23 | 2 166 | ≈ 130 |
Key Features (All Models)
- Heavy-duty glass-filled thermoplastic housing—lightweight, corrosion-proof, and UV-resistant.
- Extra-large strainer basket with clear lid minimises maintenance and protects downstream equipment.
- Stainless-steel motor shaft with double mechanical seal for leak-free longevity.
- Thermal overload protection prevents motor damage during continuous operation.
- IP55-rated motor enclosure for reliable outdoor installation in splash zones.
- Union fittings supplied for fast connection to 90 mm (3½″) or 110 mm (4″) pipework—verify size before ordering.
Need sizing help or a bulk-order quote? Contact us here and our pump specialists will respond promptly.
