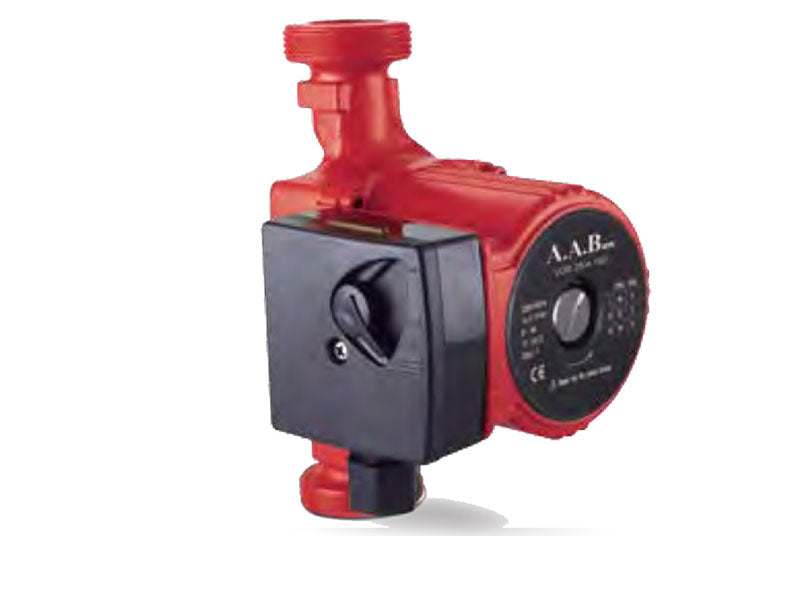

Quiet, Compact & Reliable Heating Circulators
-
Energy Efficient: Designed for low-power hot water circulation in closed-loop heating systems.
-
Three-Speed Control: Adjust the flow rate to match your system’s demand.
-
Built-in Thermal Protection: Prevents motor burnout from overheating.
-
Quiet Operation: Perfect for domestic use with near-silent performance.
-
Simple Installation: Comes with threaded brass unions for quick connection.

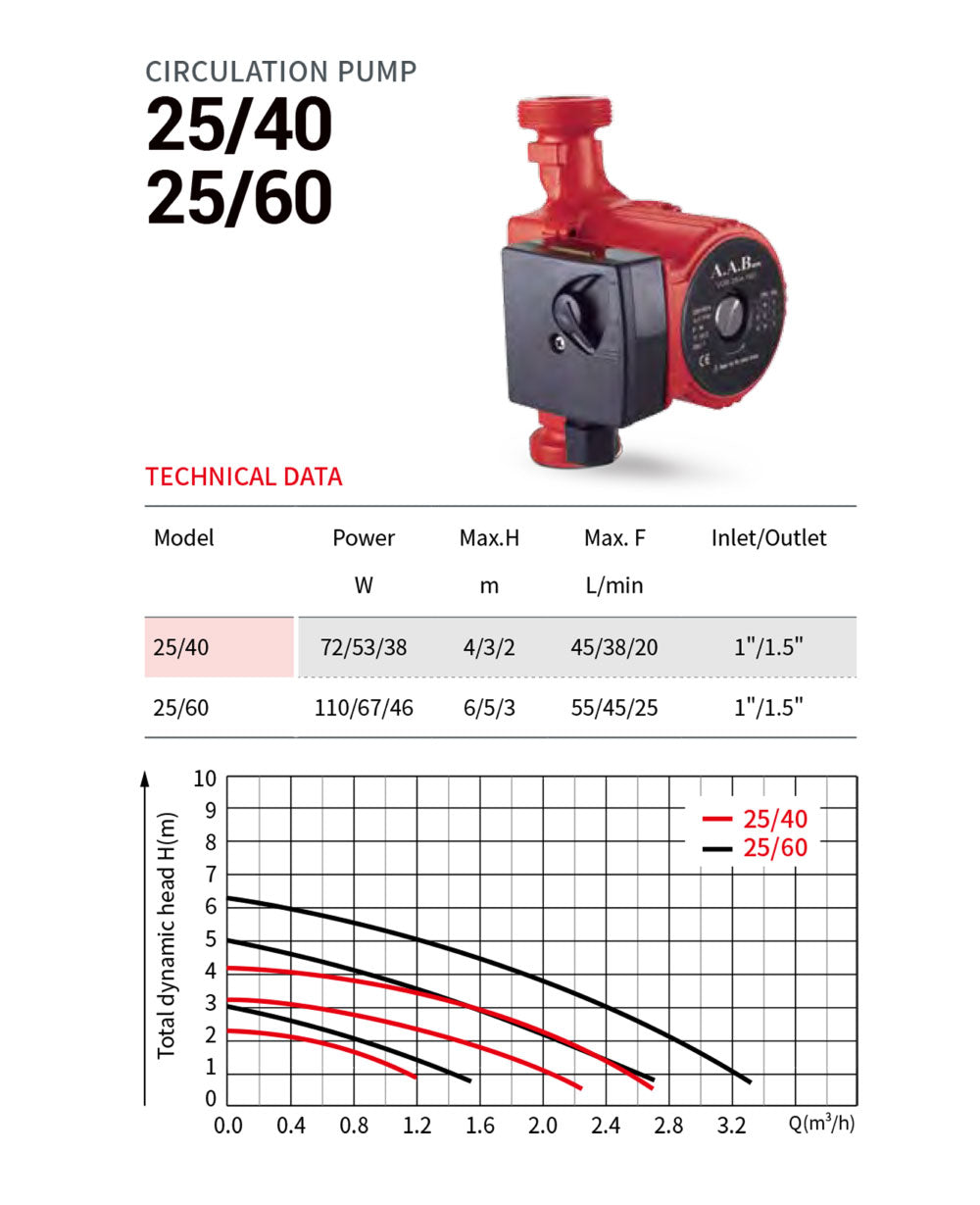

Model Line-Up & Technical Specs
| Model |
Power |
Max Flow |
Max Head |
Connection |
Voltage |
Speed Settings |
Temperature Range |
| 25/40 |
90W |
~35 L/min |
4 m |
1” BSP |
220V – 240V / 50Hz |
3-Speed Manual |
+2°C to +110°C |
| 25/60 |
120W |
~45 L/min |
6 m |
1” BSP |
220V – 240V / 50Hz |
3-Speed Manual |
+2°C to +110°C |
Common Applications
- Hot water recirculation in central heating systems
- Floor heating loops
- Solar water heating circulation
- Domestic and light commercial boilers
Need help choosing between 25/40 or 25/60? Contact us and we’ll help you match the model to your pipe layout and building size.
