DIGITAL CIRCULATION PUMP 32/100
DIGITAL CIRCULATION PUMP 32/100
Quantity

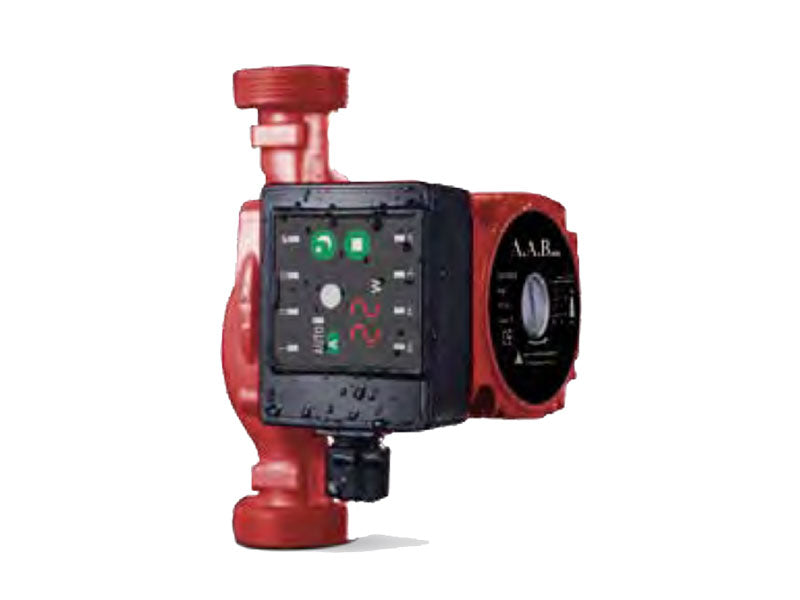

APS32/100X – Digital Circulation Pump
The APS32/100X is a high-efficiency digital circulation pump designed for heating systems, boiler loops, and domestic water recirculation. With a digital motor and selectable speed settings, it is ideal for both residential and commercial installations requiring reliable performance and control.
Applications
- Hot water circulation in heating systems
- Residential and commercial hydronic systems
- Boiler loop circulation
- Radiator and underfloor heating distribution
Technical Specifications
| Model | Power (W) | Max Head (m) | Max Flow (L/min) | Inlet/Outlet | Type |
|---|---|---|---|---|---|
| APS32/100X | 300 / 240 / 180 | 10 / 8 / 5 | 170 / 110 / 70 | 1.5″ / 2″ | Digital |
Construction Features
- Pump casing: Cast iron
- Motor: Copper winding, Class F
- Seal: Ceramic/Carbon/NBR
- Bearings: NSK
- Digital control panel for speed and diagnostics
Operating Conditions
- Medium: Clean water or glycol mixtures
- Max fluid temperature: 110°C
- Max system pressure: 10 bar
- Protection class: IP44
- Installation: Horizontal or vertical pipe
Need expert help selecting the APS32/100X? Contact our team to ensure optimal performance in your heating system.
