CIRCULATION PUMP 36/100 and 36/130

CIRCULATION PUMP 36/100 and 36/130

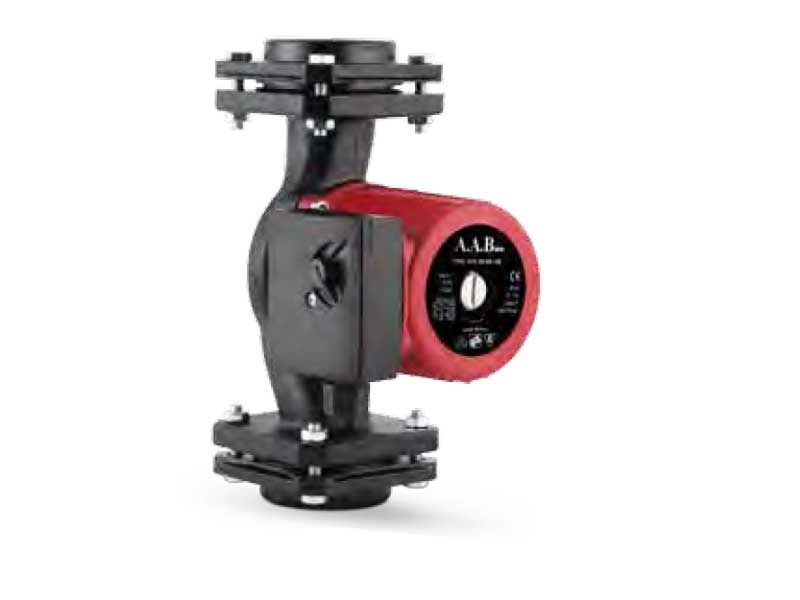

APS36 Series – High-Performance Circulation Pumps

The APS36/100X and APS36/130X are robust flange-mounted circulation pumps designed for high-efficiency water flow in heating and cooling systems. Built for reliability, they are ideal for commercial and residential circulation applications.

Applications

  • Residential and commercial heating systems
  • Circulation of hot or cold water in HVAC systems
  • Boiler loop and radiator circulation
  • Underfloor heating networks

Construction Features

  • Flange-mounted design for secure connection
  • Durable cast iron construction
  • Quiet motor with reliable NSK bearings
  • Suitable for constant or variable speed circulation

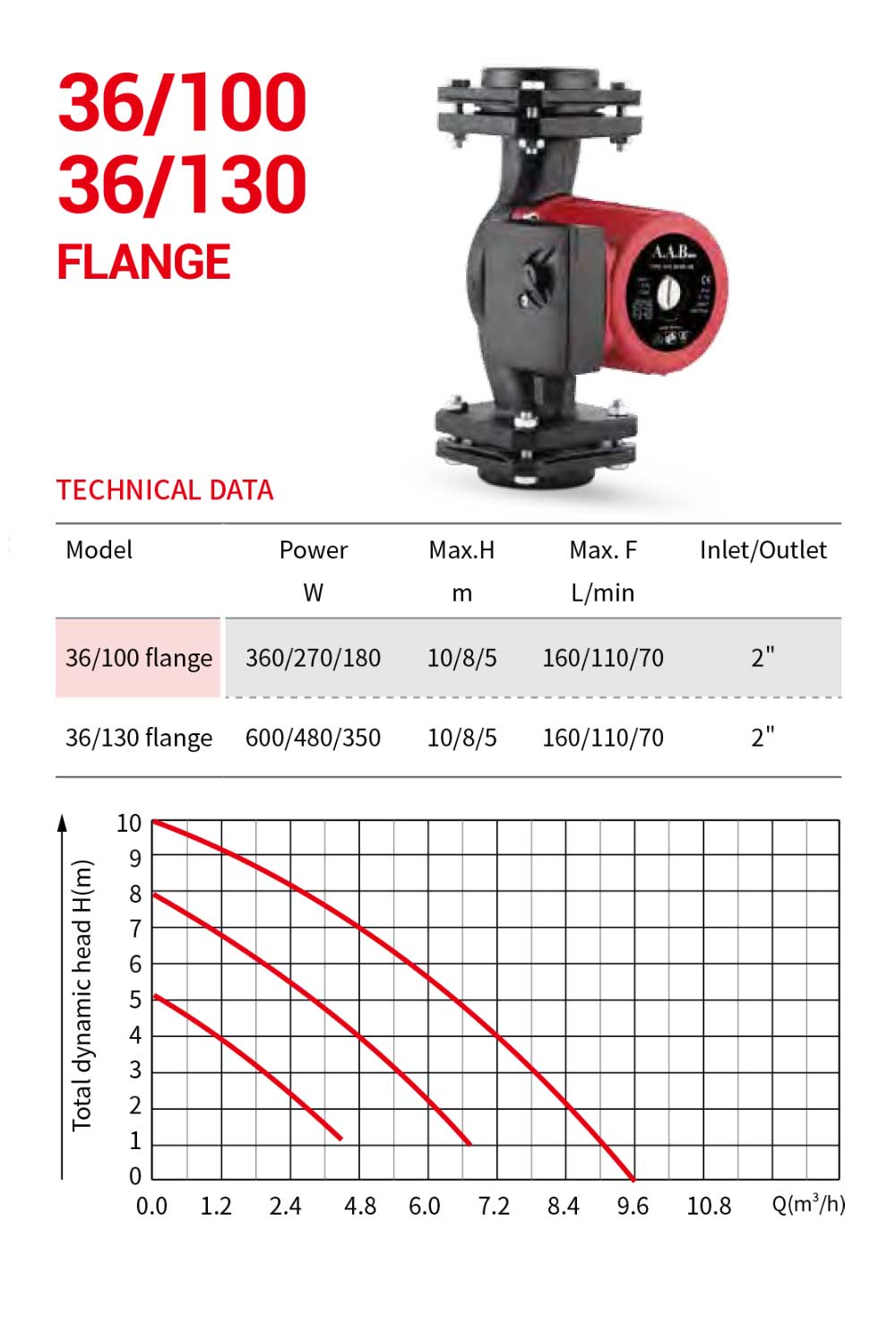

Technical Specifications

Model Power (W) Max Head (m) Flow Rate (L/min) Inlet/Outlet
APS36/100X 360 / 270 / 180 10 / 8 / 5 160 / 110 / 70 2” Flange
APS36/130X 600 / 480 / 350 10 / 8 / 5 160 / 110 / 70 2” Flange

Operating Conditions

  • Liquid temperature: up to 110°C
  • Max system pressure: 10 bar
  • Installation: horizontal or vertical pipe
  • Motor protection class: IP44

Material Configuration

  • Pump housing: Cast iron
  • Impeller: Engineering plastic or cast iron
  • Mechanical seal: Ceramic/Carbon
  • Motor: Copper winding, Class F insulation

Need help choosing between APS36/100X and APS36/130X? Contact our team for flow and pressure matching advice.
