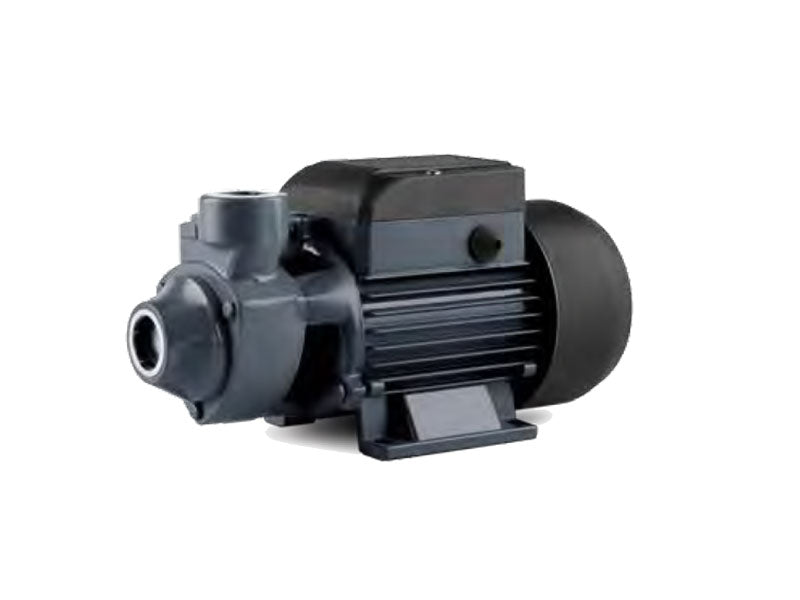

The AXP50S is a compact peripheral pump designed for domestic water supply, boiler feed, pressure boosting, and small-scale irrigation. Its brass impeller ensures strong water flow, while the small footprint allows easy installation in tight spaces.
Applications
Clean water supply for homes and apartments
Boiler feed and pressurization systems
Domestic water boosting
Small irrigation and sprinkler setups
Hot and cold water circulation

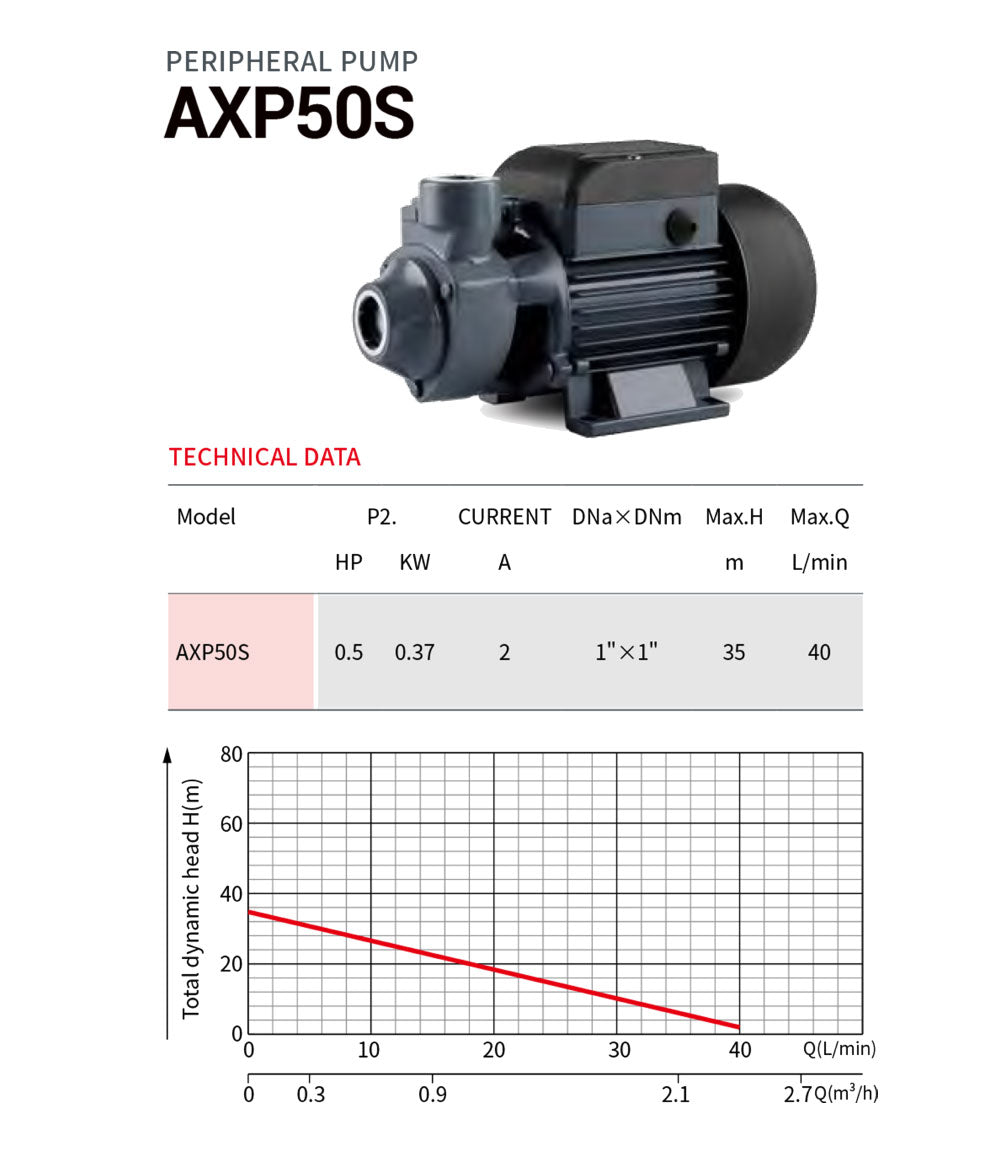

Technical Specifications
Model
Power (HP)
Power (kW)
Current (A)
Inlet × Outlet
Max Head (m)
Max Flow (L/min)
AXP50S
0.5
0.37
2
1" × 1"
35
40
Performance Curve
Flow range: 0–40 L/min
Total head: up to 35 m
Optimized for high-pressure low-flow conditions
Construction Features
Pump casing: Cast iron
Impeller: Brass
Mechanical seal: Ceramic/Graphite/NBR
Shaft: Stainless steel
Motor: Copper winding with IP44 protection
