PERIPHERAL PUMPS-AXP60/75/100S
PERIPHERAL PUMPS-AXP60/75/100S
Quantity

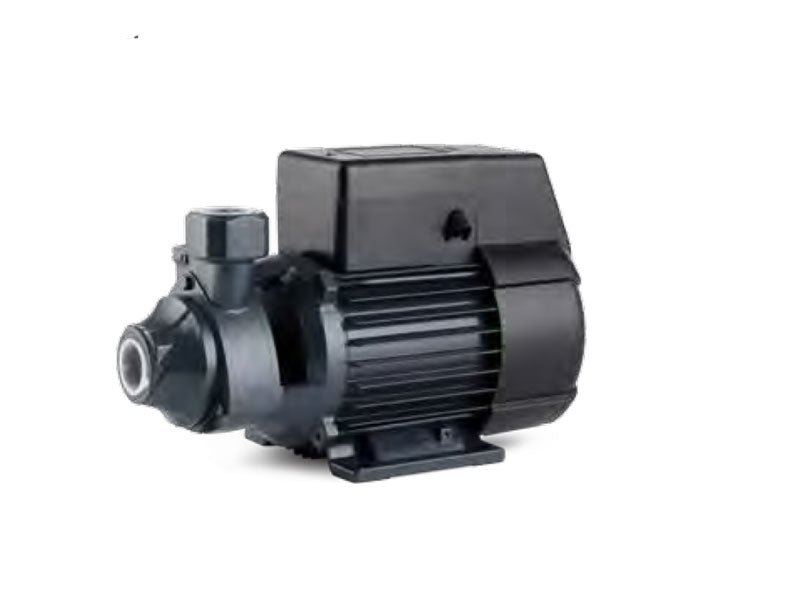

AXP Series – Peripheral Pumps (AXP60S / 75S / 80S / 100S)
The AXP Series is a range of compact, high-pressure peripheral pumps designed for clean water transfer, pressure boosting, and domestic water supply. With their brass impellers and space-saving construction, they are ideal for applications requiring high head and moderate flow.
Applications
- Domestic water boosting systems
- Hot and cold clean water circulation
- Pressure maintenance in boiler feed systems
- Small-scale irrigation and sprinkler supply
- Water transfer for residential and commercial use
Construction Features
- Pump body: Cast iron with anti-rust coating
- Impeller: Brass (peripheral type)
- Mechanical seal: Ceramic/Carbon/NBR
- Motor: Copper winding, air-cooled, aluminum housing
- Protection class: IP44
- Insulation class: B
Technical Specifications
| Model | Power (HP) | Power (kW) | Voltage | Max Head (m) | Max Flow (L/min) | Inlet × Outlet |
|---|---|---|---|---|---|---|
| AXP60S | 0.5 | 0.37 | 220V | 38 | 42 | 1" × 1" |
| AXP75S | 0.75 | 0.55 | 220V | 45 | 48 | 1" × 1" |
| AXP80S | 1.0 | 0.75 | 220V | 50 | 50 | 1" × 1" |
| AXP100S | 1.5 | 1.1 | 220V | 60 | 55 | 1" × 1" |
Operating Conditions
- Liquid type: Clean water (non-corrosive, non-flammable)
- Max liquid temperature: 60°C
- Max ambient temperature: 40°C
- Max suction head: 8 m
Need help selecting the right AXP model? Contact our technical team for personalized guidance based on your pressure and flow requirements.
