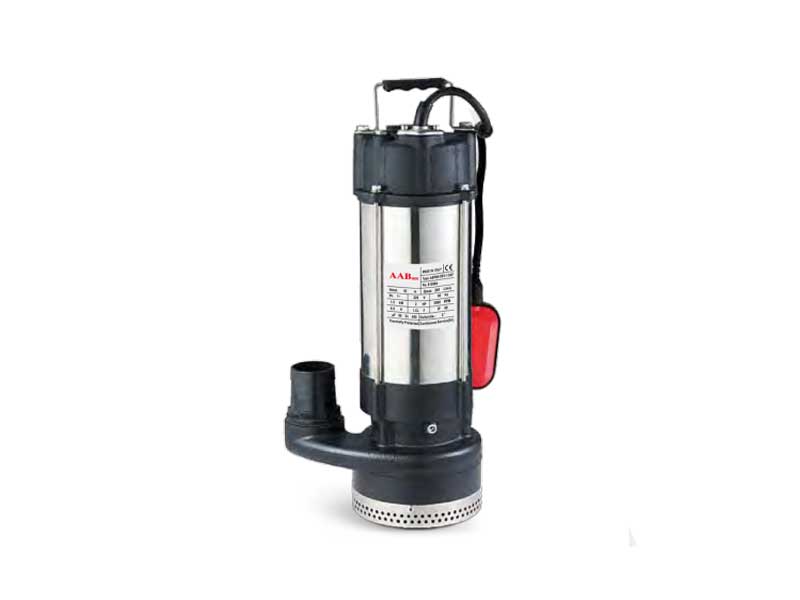

Stainless Steel Submersible Pump ASPA6-AF
Stainless Steel Submersible Pump ASPA6-AF
Quantity
Ideal Uses & Benefits
- Urban & Rural Well Pumping: Delivers steady water supply for homes, apartment blocks, and shallow wells up to 5 m depth.
- Field Irrigation & Garden Watering: Stainless-steel construction handles sandy or slightly acidic water (pH 4–10) without corrosion.
- Industrial Dewatering: Quickly removes accumulated runoff from construction sites, basements and machine pits.
- Livestock & Poultry Facilities: Reliable drainage keeps barns hygienic and reduces standing-water hazards.
- Emergency Flood Control: Compact submersible design drops straight into pits or sumps—no priming or suction lift required.

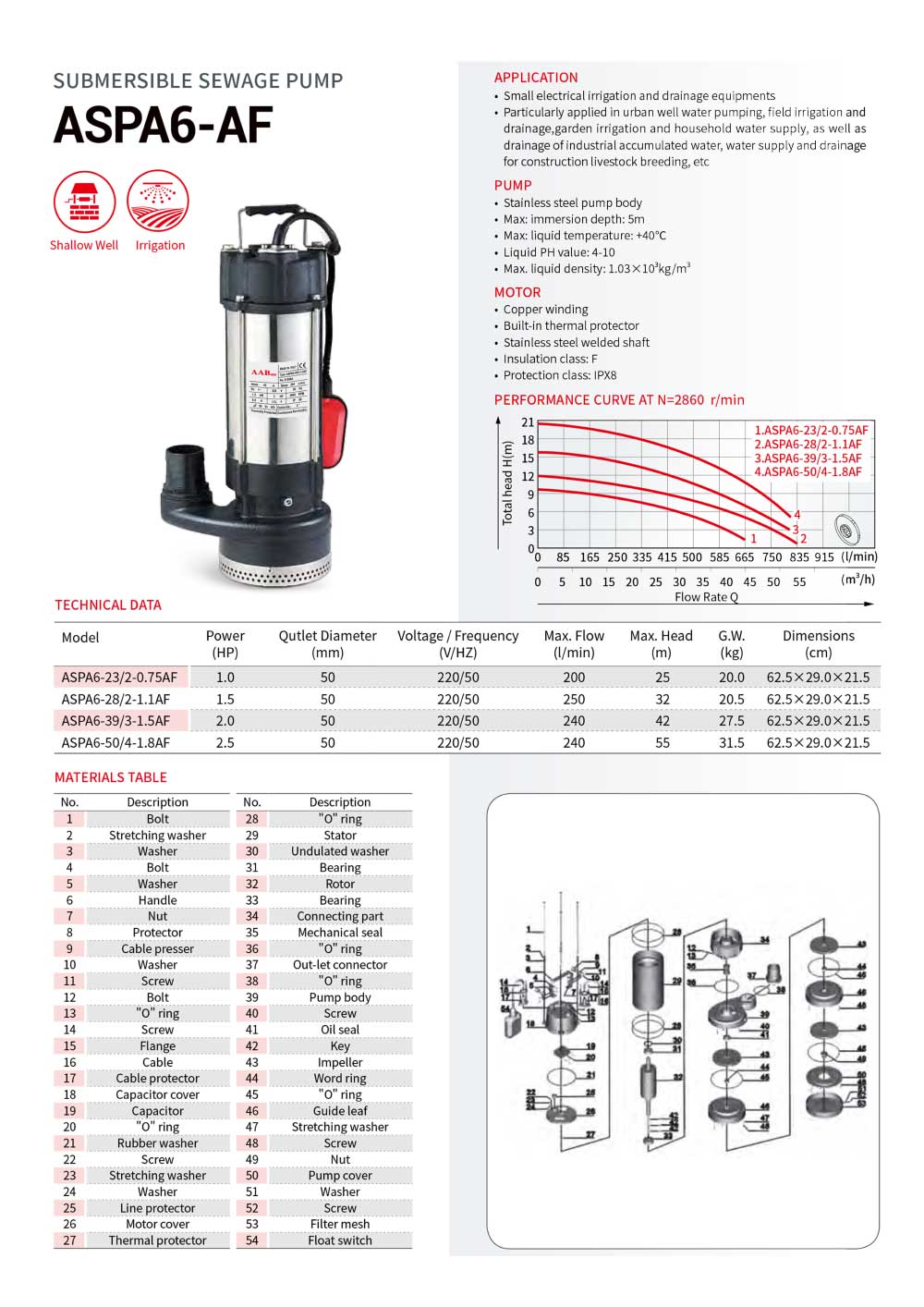

Pump Family & Specifications
| Model | Power (HP / kW) |
Outlet Diameter (mm) |
Voltage / Freq. | Max Flow (L/min) |
Max Head (m) |
Weight (kg) |
Dimensions (cm) |
|---|---|---|---|---|---|---|---|
| ASPA6-23/2.0-75AF | 1 / 0.75 | 50 | 220 V / 50 Hz | 200 | 25 | 20.0 | 62.5 × 29.0 × 21.5 |
| ASPA6-28/2.1AF | 1.5 / 1.1 | 50 | 220 V / 50 Hz | 250 | 32 | 20.5 | 62.5 × 29.0 × 21.5 |
| ASPA6-39/3.1-5AF | 2 / 1.5 | 50 | 220 V / 50 Hz | 240 | 40 | 27.0 | 62.5 × 29.0 × 21.5 |
| ASPA6-50/4.1-8AF | 2.5 / 1.8 | 50 | 220 V / 50 Hz | 240 | 55 | 31.5 | 62.5 × 29.0 × 21.5 |
Construction & Protections
- Pump Body: Corrosion-resistant stainless steel.
- Max Immersion Depth: 5 m.
- Max Liquid Temperature: 40 °C.
- Liquid pH Range: 4 – 10.
- Max Liquid Density: 1.03 × 10³ kg/m³.
Motor Features
- Copper winding for high efficiency.
- Built-in thermal protector—auto-shuts off if overheated.
- Stainless-steel welded shaft for superior durability.
- Insulation class F, protection class IPX8 (safe for full submersion).
Need help choosing the right ASPA6-AF model? Contact us here and our pump experts will respond promptly.
