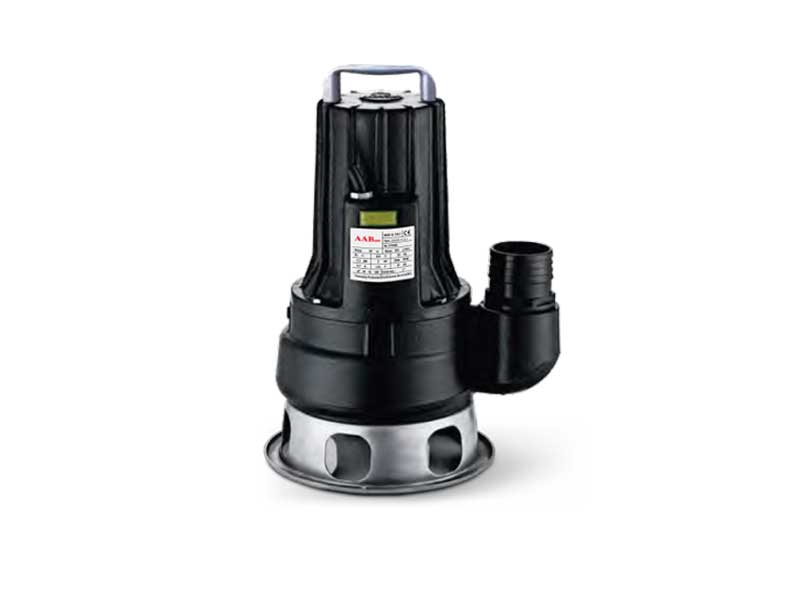

Submersible Pump AWQ3-11-2.2
Submersible Pump AWQ3-11-2.2
Quantity
Ideal Uses & Benefits
- Construction & Factory Drainage: 3 HP motor moves up to 966 L/min, rapidly clearing pits, shafts, and wash-down bays.
- Municipal Sewage Lift Stations: Stainless body withstands corrosive wastewater and lifts up to 20 m for short force mains.
- Residential & Commercial Sumps: Prevents basement and car-park flooding during heavy storms.
- Agriculture & Livestock Facilities: Handles slurry and run-off; 50 mm solids passage keeps lines clear.
- Emergency Flood Response: Submersible, self-priming design drops straight into flooded areas—no suction lift needed.

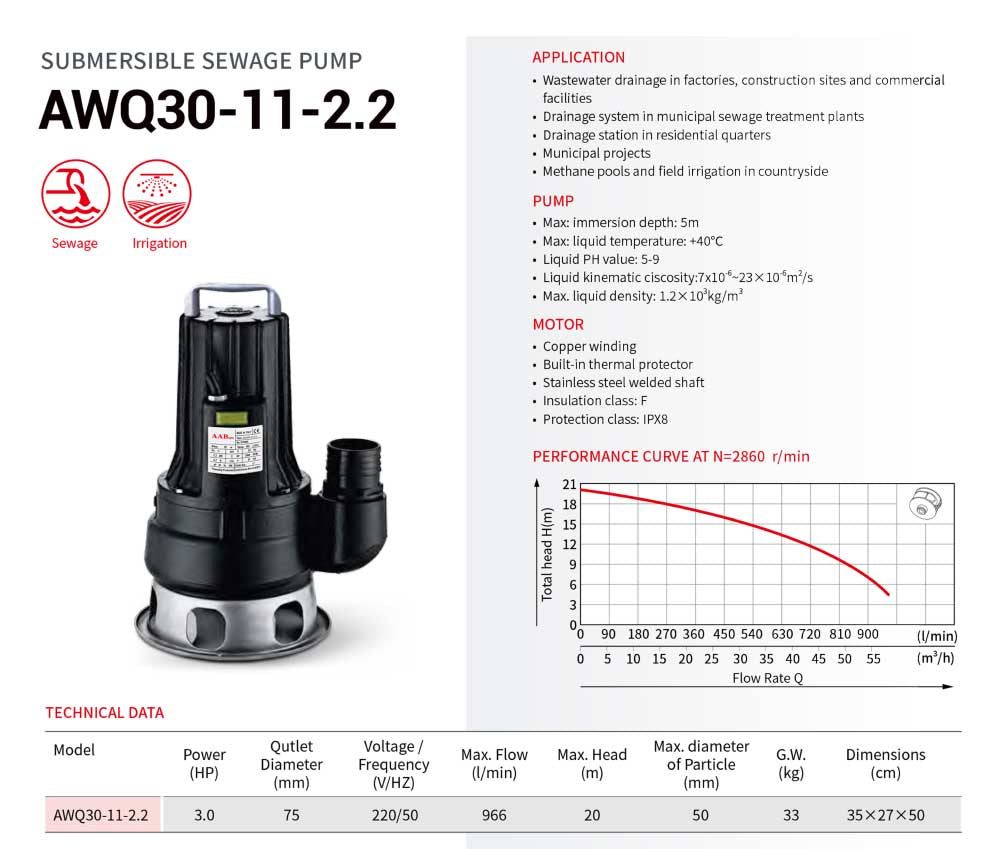

Pump Specifications
| Model | AWQ30-11-2.2 |
| Power | 3 HP / 2.2 kW |
| Outlet Diameter | 75 mm |
| Voltage / Frequency | 220 V / 50 Hz (single-phase) |
| Max. Flow | 966 L/min (≈ 58 m³/h) |
| Max. Head | 20 m |
| Max. Solid Diameter | 50 mm |
| Weight (G.W.) | 33 kg |
| Dimensions (L × W × H) | 35 × 27 × 50 cm |
Construction & Operating Limits
- Stainless-steel pump body—corrosion-resistant for sewage, slurry and grey-water duty.
- Max. immersion depth : 5 m | Max. liquid temperature : 40 °C.
- Liquid pH range : 5 – 9 | Max. liquid density : 1.2 × 10³ kg/m³.
Motor Features
- Copper winding for high efficiency and long life.
- Built-in thermal protector—auto-shuts off if overheated.
- Stainless-steel welded shaft for superior durability.
- Insulation class F & protection class IPX8—safe for continuous submersion.
Need help confirming suitability or arranging bulk pricing? Contact us here, and our sewage-pump specialists will respond promptly.
