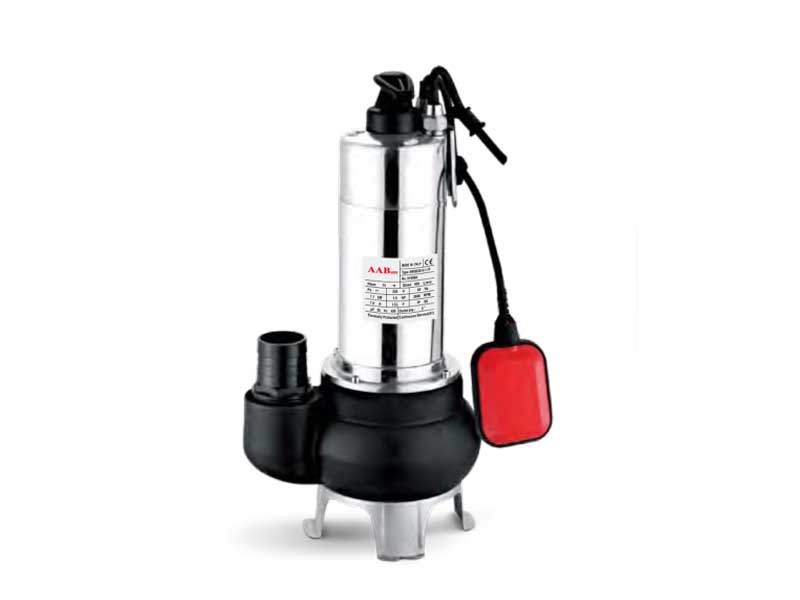

Submersible Pump 1.5 HP AWQD20-8-1.1F
Submersible Pump 1.5 HP AWQD20-8-1.1F
Quantity
Ideal Uses & Benefits
- Construction & Factory Drainage: Quickly removes slurry, runoff and wash-water to keep worksites safe and productive.
- Municipal Sewage Treatment: Reliable lift-station pump for grit chambers, equalisation tanks and sludge pits.
- Residential Drainage Stations: Prevents basement flooding and sewage backups in apartment blocks and housing estates.
- Rural Irrigation & Methane Ponds: Stainless body resists corrosion from fertilisers and organic matter.
- Emergency Dewatering: Compact submersible form drops straight into pits—no priming or suction lift needed.

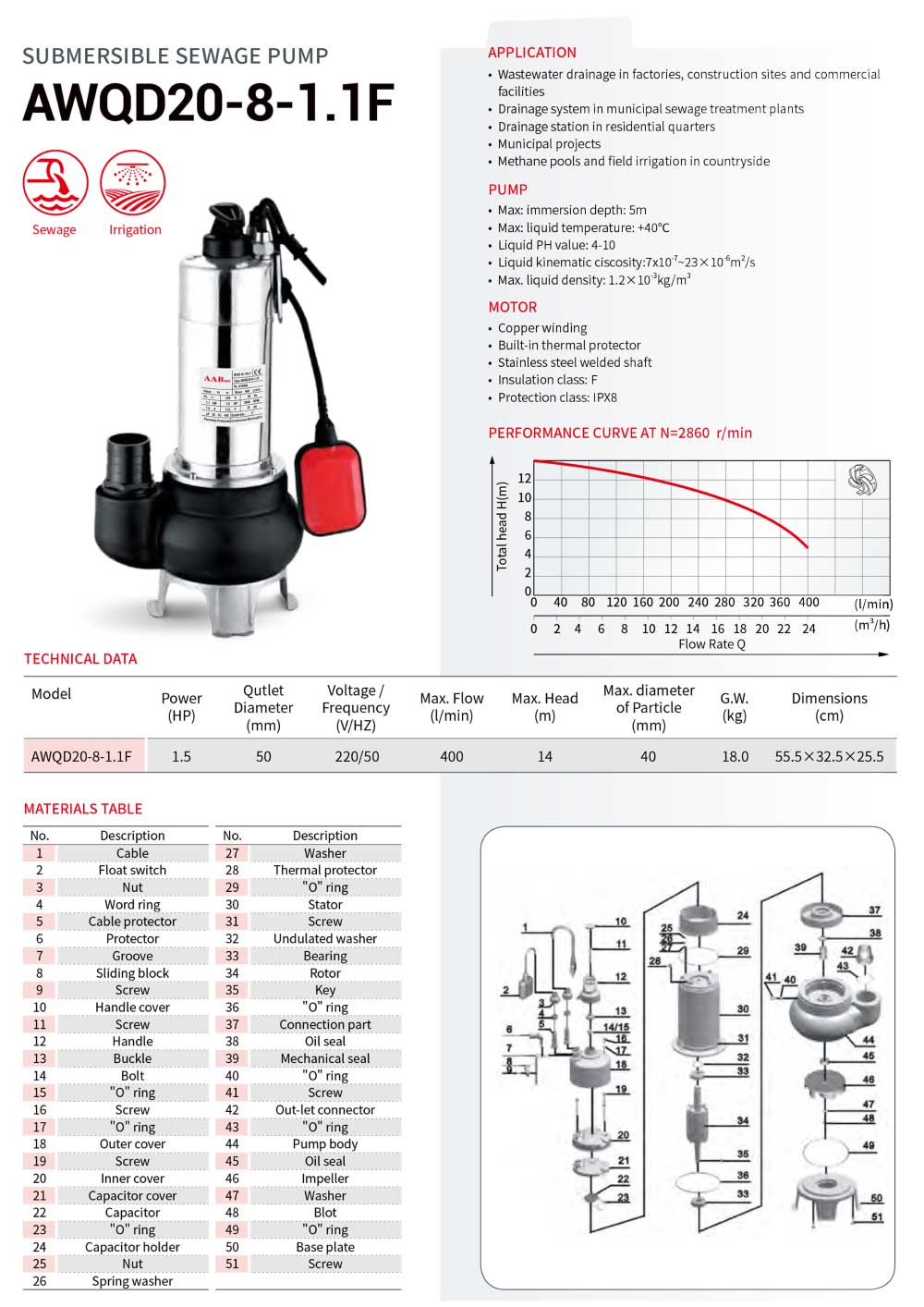

Pump Specifications
| Model | AWQD20-8-1.1F |
| Power | 1.5 HP / 1.1 kW |
| Outlet Diameter | 50 mm |
| Voltage / Frequency | 220 V / 50 Hz (single-phase) |
| Max. Flow | 400 L/min (≈ 24 m³/h) |
| Max. Head | 14 m |
| Max. Solid Diameter | 40 mm |
| Weight (G.W.) | 18.0 kg |
| Dimensions (L × W × H) | 55.5 × 32.5 × 25.5 cm |
Construction Details
- Stainless-steel pump body—corrosion resistant for sewage and grey-water duty.
- Max. immersion depth: 5 m
- Max. liquid temperature: 40 °C
- Liquid pH range: 4 – 10
- Liquid kinematic viscosity: 7 × 10-6 – 23 × 10-6 m²/s
- Max. liquid density: 1.2 × 10³ kg/m³
Motor Features
- Copper winding for high efficiency.
- Built-in thermal protector safeguards against overheating.
- Stainless-steel welded shaft for long service life.
- Insulation class F & protection class IPX8—safe for continuous submersion.
Have questions or need bulk pricing? Contact us here; our sewage-pump specialists will be glad to help.
