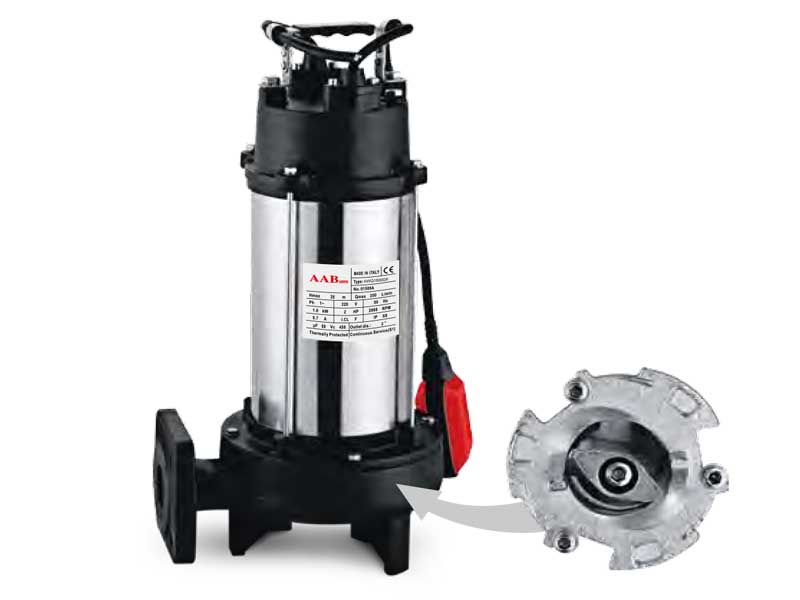

Submersible Pump AWQ1800DF

Submersible Pump AWQ1800DF

Ideal Uses & Benefits

  • Industrial & Construction Sites: Rapidly removes wastewater to keep projects on schedule and work zones safe.
  • Commercial Facilities: Handles drain and overflow challenges, protecting inventory and equipment from water damage.
  • Municipal Sewage Systems: Trusted for lift stations and treatment plants that demand 24/7 reliability.
  • Residential Complexes: Shields basements and common areas from flooding, reducing costly repairs.
  • Agriculture & Rural Projects: Powers field irrigation and methane pools, boosting farm output and sustainability.

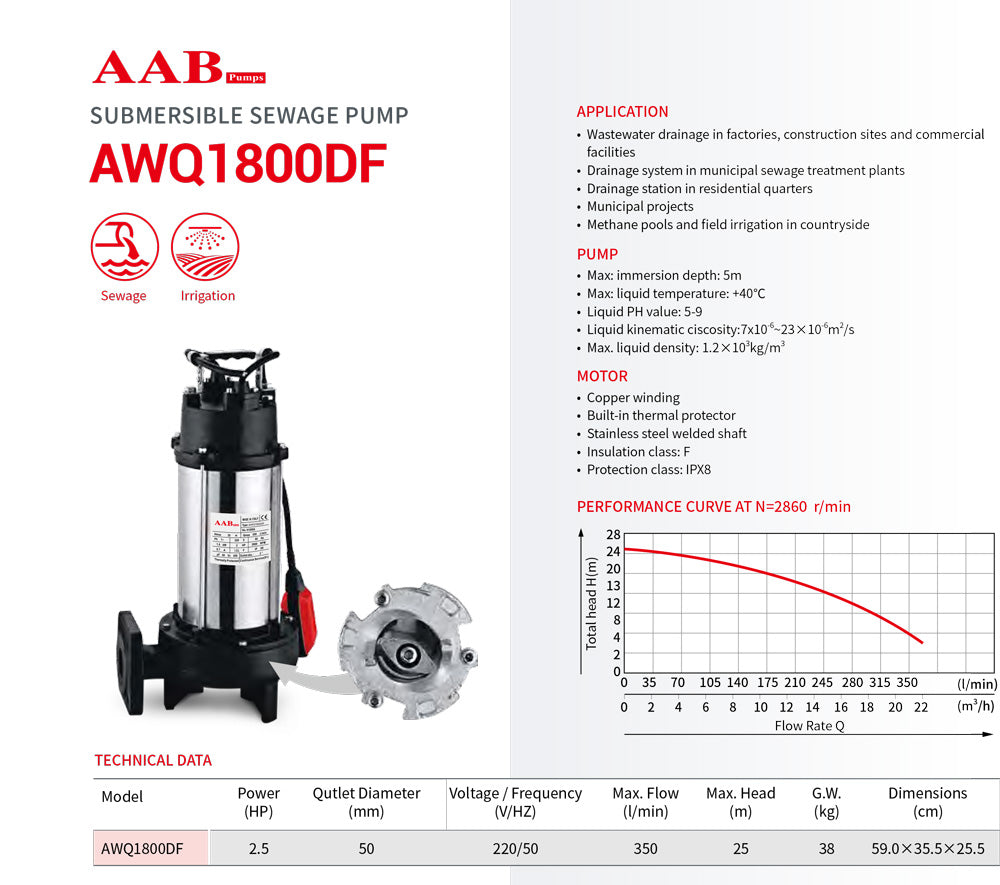

Pump Specifications

Max. immersion depth 5 m
Max. liquid temperature 40 °C / 104 °F
Liquid pH range 5 – 9
Liquid kinematic viscosity 7 × 10-6 – 23 × 10-6 m²/s
Max. liquid density 1.2 × 103 kg/m³

Motor Features

  • Copper winding for maximum conductivity and durability
  • Built-in thermal protector prevents overheating
  • Stainless-steel welded shaft resists corrosion
  • Insulation class F for extended service life
  • Protection class IPX8 for full submersion safety

Performance Curve

Rated at N = 2860 r/min. (Upload curve image/data here if required.)

Need any more information? Contact us here and our team will be happy to help.
