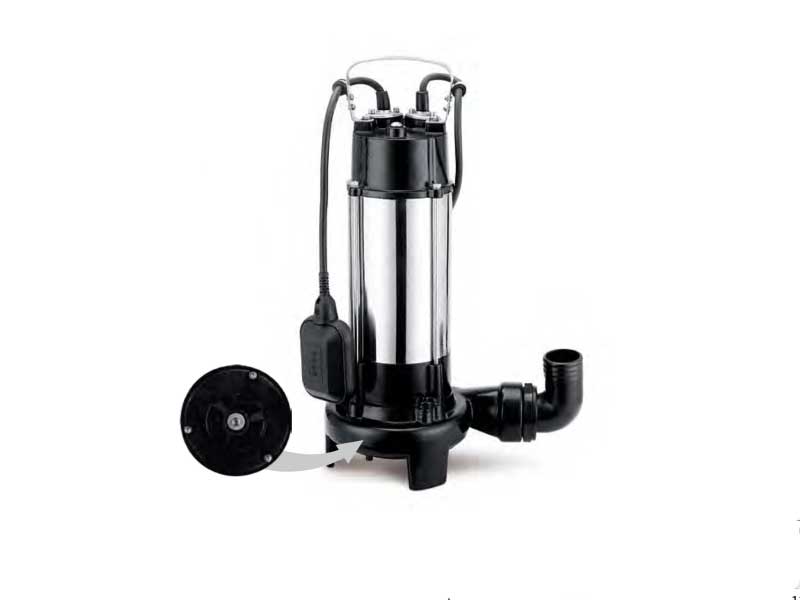

Submersible Pump AV-D

Submersible Pump AV-D

Power

Ideal Uses & Benefits

  • Construction & Factory Drainage: Keeps trenches and pits dry—flows up to 438 L/min on the largest model.
  • Municipal Sewage Lift Stations: Stainless bodies resist corrosion; heads to 13 m suit short force-mains.
  • Residential & Commercial Sumps: Prevents flooding in basements, car parks, and equipment pits.
  • Livestock & Poultry Facilities: Handles manure-laden water; 75 mm outlet (AV2200D) clears larger solids.
  • Rural Irrigation & Methane Ponds: Submersible design drops straight into tanks—no priming required.

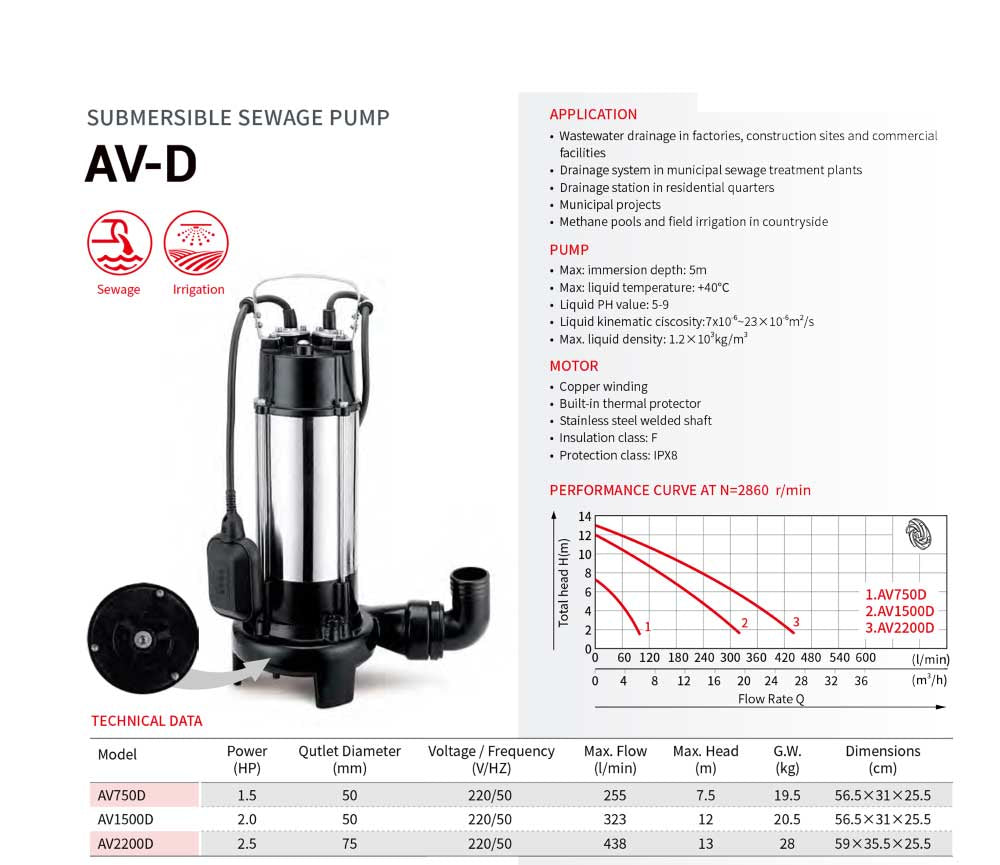

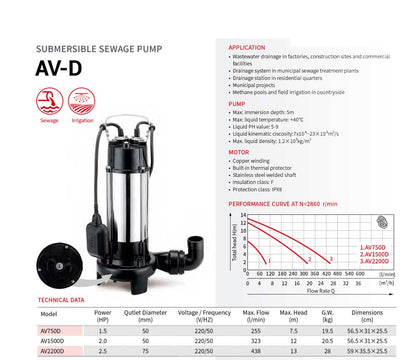

Model Line-up & Key Specifications

Model Power
(HP)		 Outlet Ø
(mm)		 Voltage / Freq. Max Flow
(L/min)		 Max Head
(m)		 Weight
(kg)		 Dimensions
(cm)
AV750D 1.5 50 220 V / 50 Hz 255 7.5 19.5 56.5 × 31 × 25.5
AV1500D 2.0 50 220 V / 50 Hz 323 12 20.5 56.5 × 31 × 25.5
AV2200D 2.5 75 220 V / 50 Hz 438 13 28 59 × 35.5 × 25.5

Construction & Operating Limits

  • Stainless-steel pump body—corrosion-proof for sewage, slurry and grey-water duty.
  • Max immersion depth : 5 m | Max liquid temp : 40 °C.
  • Liquid pH range : 5 – 9 | Max liquid density : 1.2 × 10³ kg/m³.

Motor Features

  • Copper winding for high efficiency.
  • Built-in thermal protector shuts off automatically if overheated.
  • Stainless-steel welded shaft for long service life.
  • Insulation class F & protection class IPX8—safe for continuous submersion.

Need help choosing the right AV-D model or arranging bulk pricing? Contact us here—our sewage-pump specialists will respond promptly.
