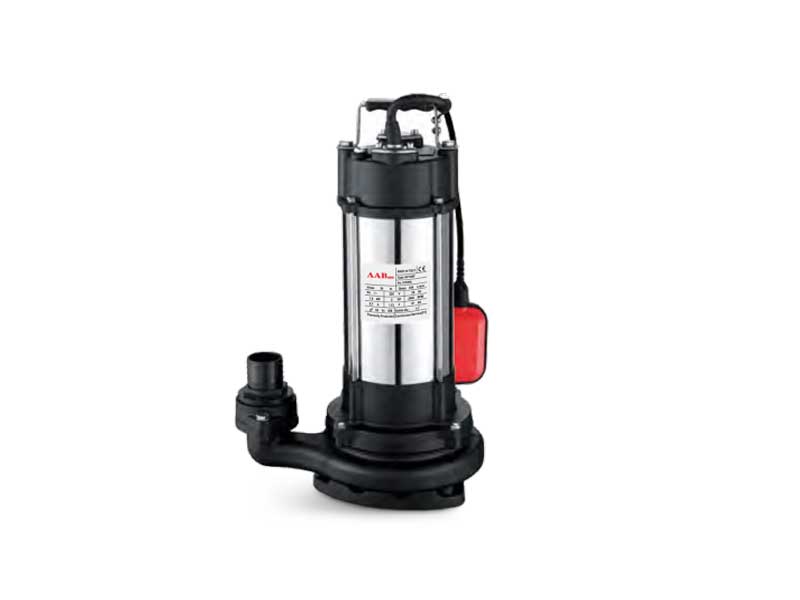

Submersible Pump AV1500F
Submersible Pump AV1500F
Quantity
Ideal Uses & Benefits
- Construction & Factory Drainage: 2 HP motor moves 300 L/min to keep work areas dry and safe.
- Municipal Sewage Lift Stations: Stainless body resists corrosion and lifts up to 24 m—great for short force mains.
- Residential & Commercial Sumps: Prevents basement flooding in apartments, car parks and machine pits.
- Rural Irrigation & Methane Ponds: Durable design tolerates organic wastewater and fertilisers.
- Emergency Flood Control: Compact submersible form drops straight into pits—no priming or suction lift required.

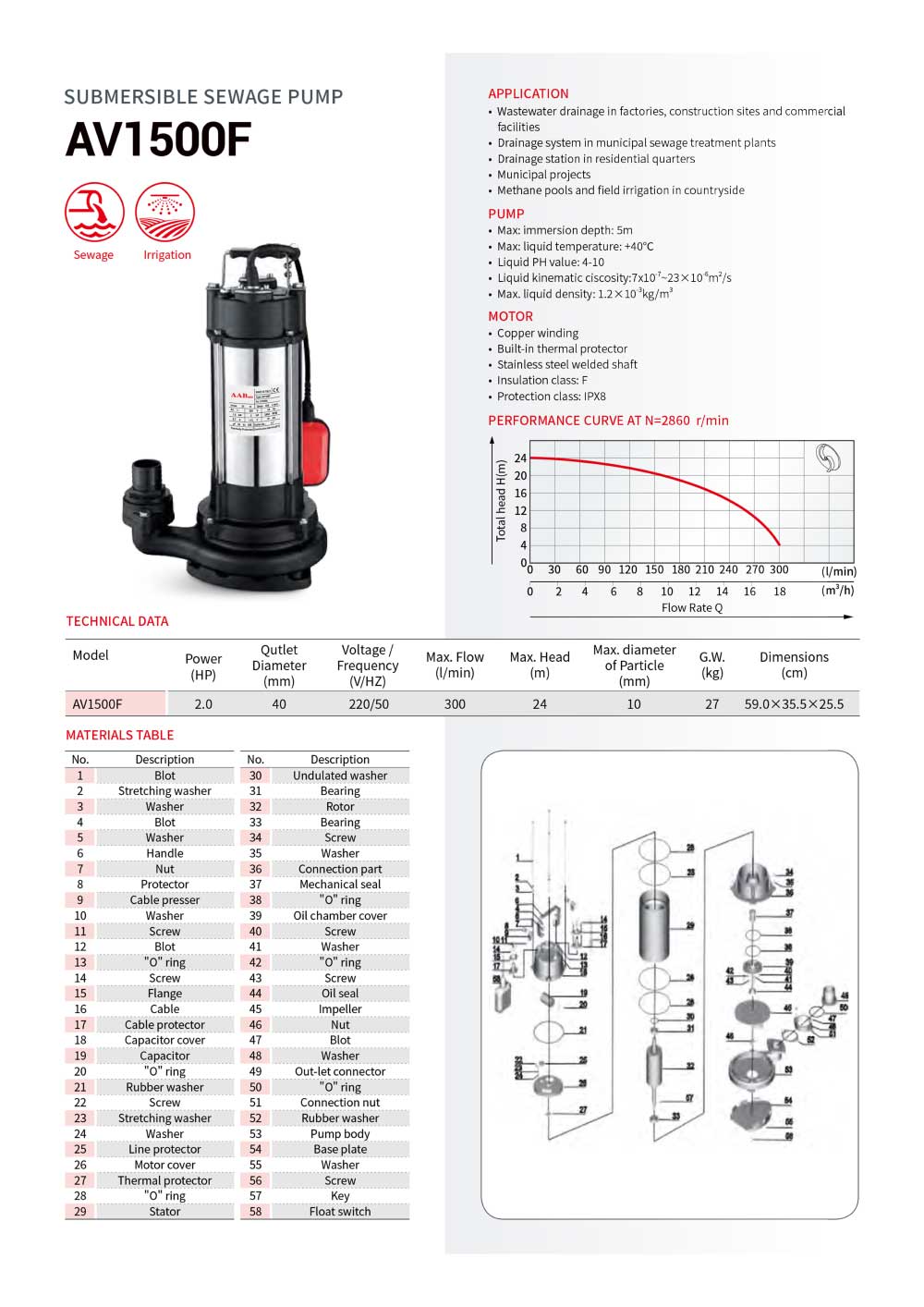

Pump Specifications
| Model | AV1500F |
| Power | 2 HP |
| Outlet Diameter | 40 mm |
| Voltage / Frequency | 220 V / 50 Hz (single-phase) |
| Max. Flow | 300 L/min (≈ 18 m³/h) |
| Max. Head | 24 m |
| Max. Solid Diameter | 10 mm |
| Weight (G.W.) | 27 kg |
| Dimensions (L × W × H) | 59.0 × 35.5 × 25.5 cm |
Construction & Operating Limits
- Stainless-steel pump body—corrosion-resistant for sewage, slurry and grey-water duty.
- Max. immersion depth : 5 m | Max. liquid temperature : 40 °C.
- Liquid pH range : 4 – 10 | Max. liquid density : 1.2 × 10³ kg/m³.
Motor Features
- Copper winding for high efficiency.
- Built-in thermal protector automatically shuts off if overheated.
- Stainless-steel welded shaft for long service life.
- Insulation class F & protection class IPX8—safe for continuous submersion.
Need sizing help or bulk pricing? Contact us here—our sewage-pump specialists will respond promptly.
