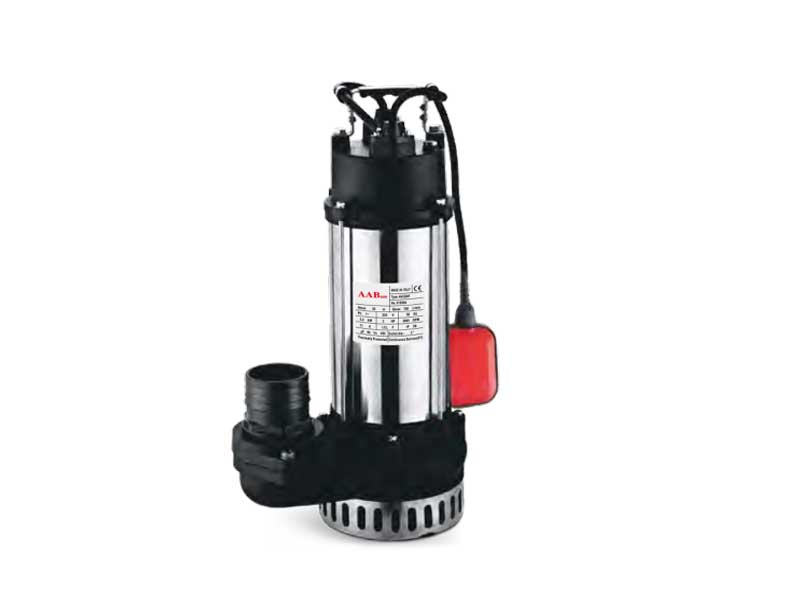

Submersible Pump AV2200F/3000BF

Submersible Pump AV2200F/3000BF

Power

Ideal Uses & Benefits

  • Construction & Factory Drainage: Rapidly removes slurry and runoff, keeping work areas safe and productive.
  • Municipal Sewage Lift Stations: Stainless body resists corrosion and delivers up to 20 m head for force mains.
  • Residential & Commercial Sumps: Prevents basement flooding and sewage backups in apartment blocks and car parks.
  • Rural Irrigation & Methane Ponds: Durable design tolerates organic wastewater and fertilisers.
  • Emergency Flood Control: Submersible, self-priming design drops straight into pits—no suction lift needed.

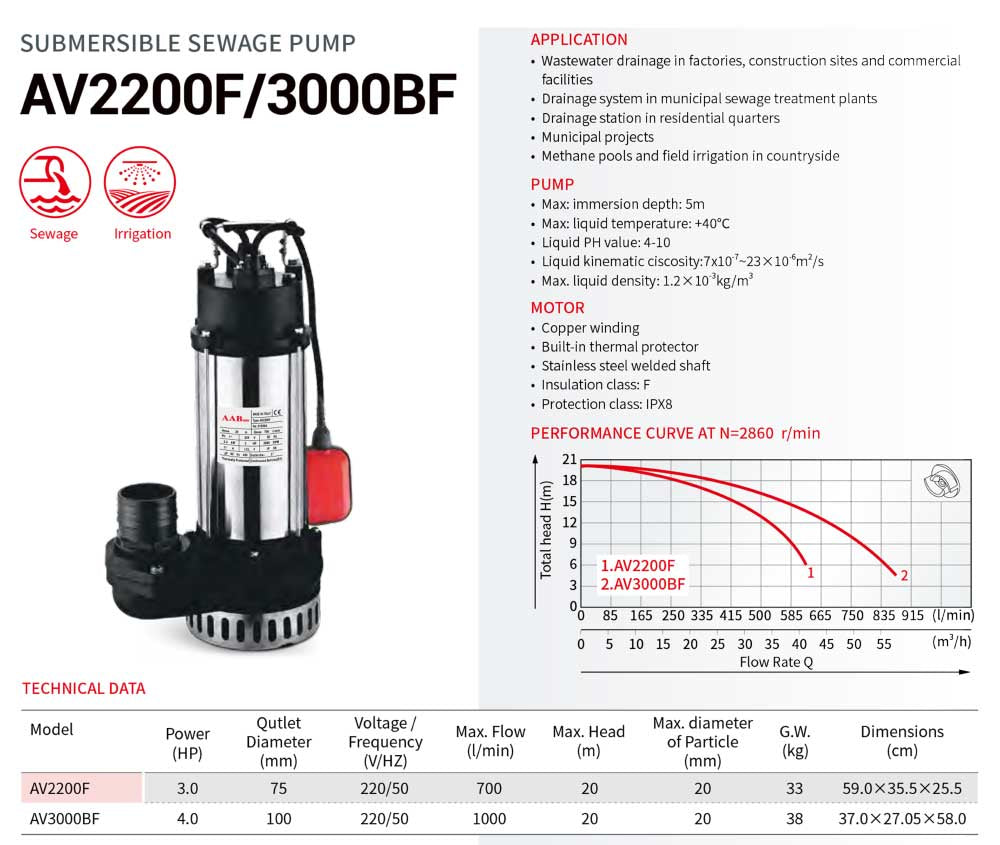

Model Line-up & Specifications

Model Power
(HP / kW)		 Outlet
Diameter (mm)		 Voltage / Freq. Max Flow
(L/min)		 Max Head
(m)		 Max Particle
(mm)		 Weight
(kg)		 Dimensions
(cm)
AV2200F 3.0 / 2.2 75 220 V / 50 Hz 700 20 20 33 59.0 × 35.5 × 25.5
AV3000BF 4.0 / 3.0 100 220 V / 50 Hz 1 000 22 20 38 37.0 × 27.0 × 58.0

Construction & Operating Limits

  • Stainless-steel pump body—corrosion-resistant for sewage, slurry and grey-water duty.
  • Max immersion depth : 5 m  |  Max liquid temperature : 40 °C.
  • Liquid pH range : 4 – 10  |  Max liquid density : 1.2 × 10³ kg/m³.

Motor Features

  • Copper winding for high efficiency.
  • Built-in thermal protector—auto-shuts off if overheated.
  • Stainless-steel welded shaft for long service life.
  • Insulation class F & protection class IPX8—safe for continuous submersion.

Questions or bulk-order requests? Contact us here and our sewage-pump specialists will respond promptly.
