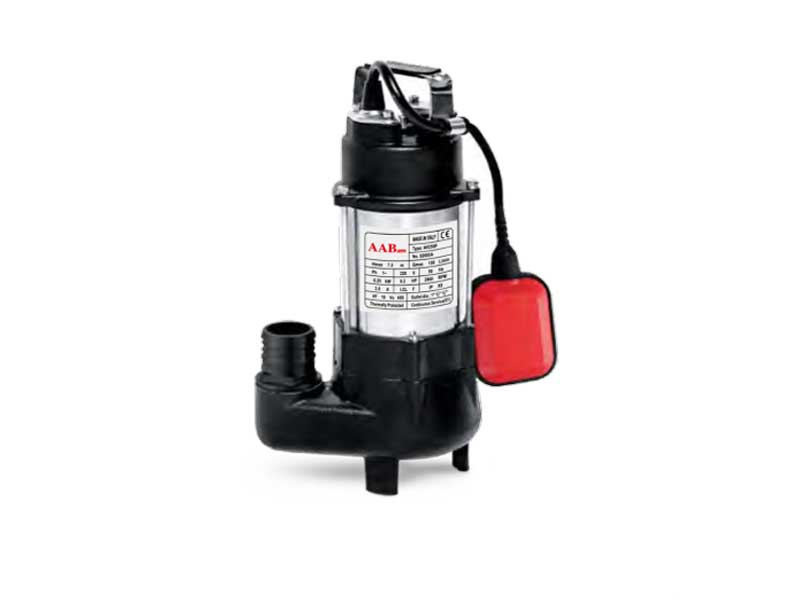

Submersible Pump AV250F
Submersible Pump AV250F
Quantity
Ideal Uses & Benefits
- Small Site & Factory Drainage: Compact 0.5 HP motor moves 150 L/min—perfect for keeping pits and trenches dry.
- Residential Sump & Basement Protection: Prevents flooding in homes, garages, and car parks during heavy rains.
- Garden Irrigation & Methane Ponds: Stainless body resists mildly acidic/alkaline water (pH 4–10) and fertiliser runoff.
- Livestock Sheds & Poultry Farms: Tolerates waste-laden water; 15 mm solids handling keeps drains clear.
- Emergency Flood Response: Lightweight (just 9.5 kg) and self-priming—drop it in and start pumping immediately.

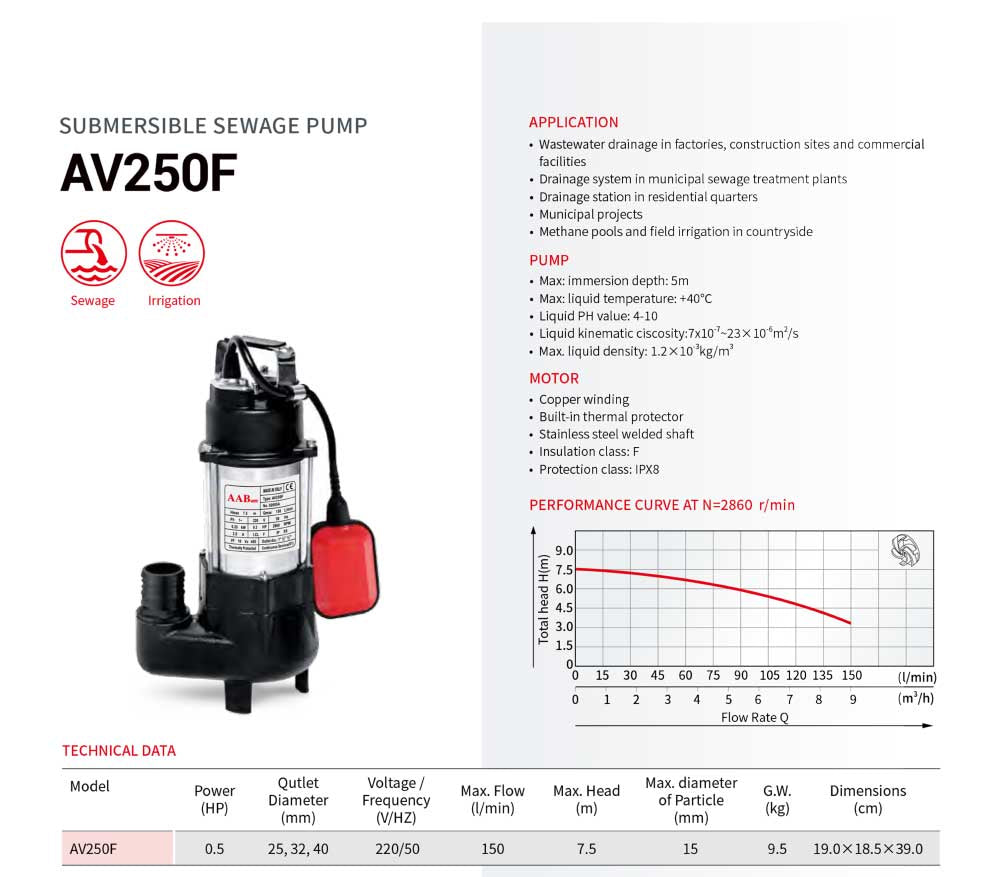

Pump Specifications
| Model | AV250F |
| Power | 0.5 HP / 0.37 kW |
| Outlet Diameter (mm) | 25 / 32 / 40 (adaptable unions included) |
| Voltage / Frequency | 220 V / 50 Hz (single-phase) |
| Max. Flow | 150 L/min (≈ 9 m³/h) |
| Max. Head | 7.5 m |
| Max. Solid Diameter | 15 mm |
| Weight (G.W.) | 9.5 kg |
| Dimensions (L × W × H) | 19.0 × 18.5 × 39.0 cm |
Construction & Operating Limits
- Stainless-steel pump body—corrosion-proof for sewage, slurry and grey-water duty.
- Max. immersion depth : 5 m | Max. liquid temperature : 40 °C.
- Liquid pH range : 4 – 10 | Max. liquid density : 1.2 × 10³ kg/m³.
Motor Features
- Copper winding for high efficiency and durability.
- Built-in thermal protector—automatically shuts off if overheated.
- Stainless-steel welded shaft for long service life.
- Insulation class F & protection class IPX8—safe for continuous submersion.
Need help selecting the right pump or arranging bulk pricing? Contact us here and our sewage-pump specialists will respond promptly.
