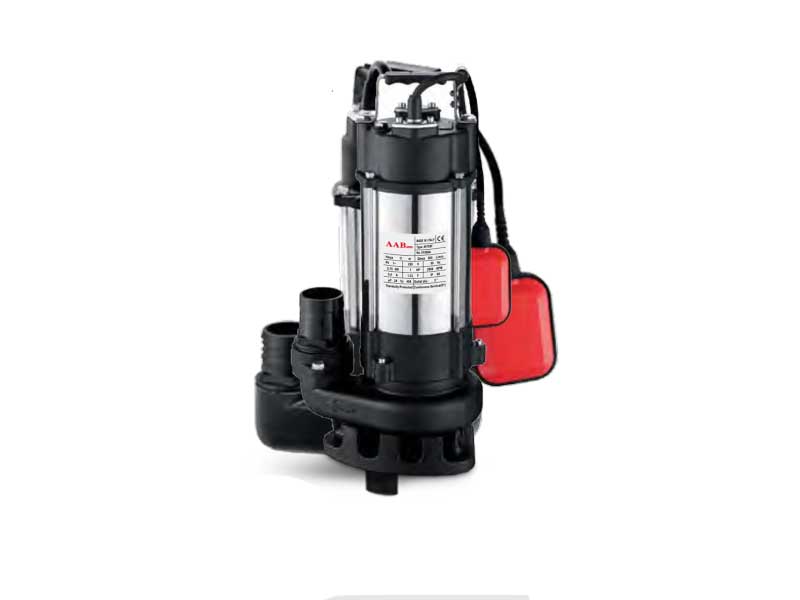

Submersible Pump AV750F
Submersible Pump AV750F
Quantity
Ideal Uses & Benefits
- Construction & Factory Drainage: 1 HP motor moves 300 L/min, quickly clearing pits and work areas.
- Municipal Sewage Lift Stations: Stainless body withstands corrosive wastewater and raises flow up to 11 m.
- Residential & Commercial Sumps: Prevents basement and car-park flooding during heavy rains.
- Rural Irrigation & Methane Ponds: Durable build tolerates organic runoff and fertiliser residues.
- Emergency Flood Control: Compact submersible design drops straight into pits—no priming needed.

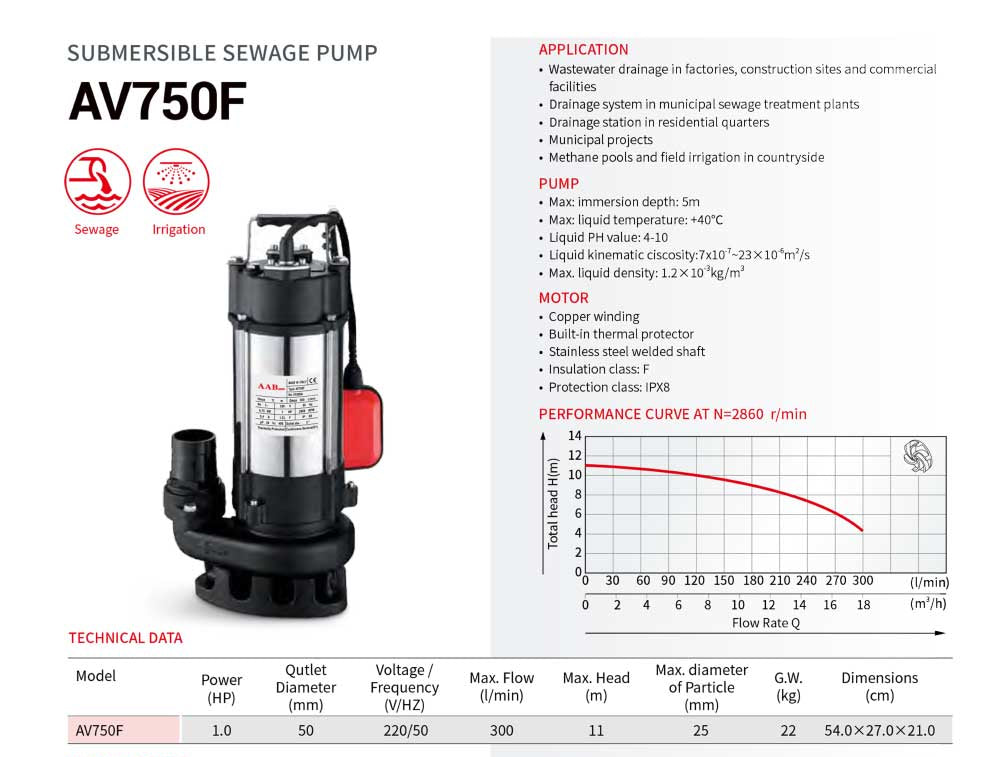

Pump Specifications
| Model | AV750F |
| Power | 1 HP |
| Outlet Diameter | 50 mm |
| Voltage / Frequency | 220 V / 50 Hz (single-phase) |
| Max. Flow | 300 L/min (≈ 18 m³/h) |
| Max. Head | 11 m |
| Max. Solid Diameter | 25 mm |
| Weight (G.W.) | 22 kg |
| Dimensions (L × W × H) | 54.0 × 27.0 × 21.0 cm |
Construction & Operating Limits
- Stainless-steel pump body: corrosion-resistant for sewage, slurry and grey-water duty.
- Max. immersion depth: 5 m | Max. liquid temperature: 40 °C.
- Liquid pH range: 4 – 10 | Max. liquid density: 1.2 × 10³ kg/m³.
Motor Features
- Copper winding for high efficiency.
- Built-in thermal protector automatically shuts off if overheated.
- Stainless-steel welded shaft for long service life.
- Insulation class F & protection class IPX8—safe for continuous submersion.
Need sizing advice or bulk pricing? Contact us here—our sewage-pump specialists will get back to you quickly.
